22-01-3027, Molex, 2695 Female Connector Housing, 2.54mm Pitch, 2 Way, 1 Row, Корпус разъема

Molex KK Range of 2695 Series Housings

This range of Series 2695 Connector Housings feature a 2.54 mm pitch and form part of the KK Interconnect system from Molex, which provide a simple and economical way to make multipole connections to printed circuit boards. When fitting the terminals into the housings it is essential that the Molex insertion tool is used for the correct fitting of these terminals. Please see engineering note for more details.

Features and Benefits

• 2.54 mm pitch
• Wire to board connections and fittings
• Natural (white) colour
• Single Row
• Housings 22-01-2xxx have friction lock ramps
• Housings 22-01-3xxx have friction lock ramps and polarizing ribs

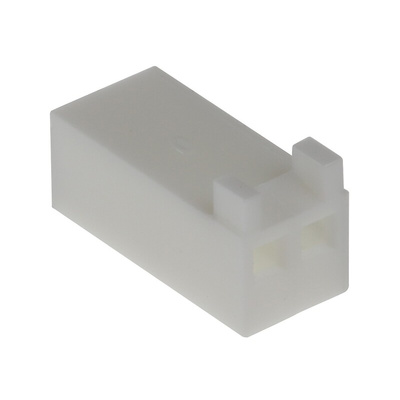

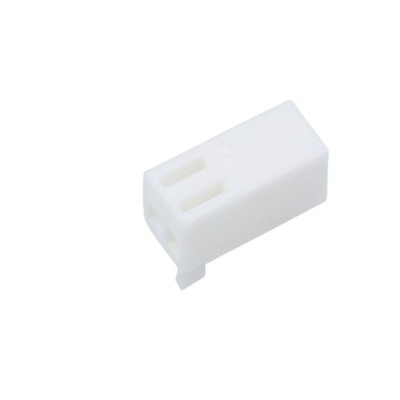

Molex Connector Housing, 2.54mm Pitch, 2 Circuits Maximum - 2695 Series - 22-01-3027

Looking for a secure home for your wire-to-board connections? Tuck them up in this female connector housing from Molex. Its 2.54mm pitch gives plenty of room for fitting crimp terminals. This unit's designed with two contacts on a single row and a straight body orientation to make sure it fits snugly in your setup. It's a space-efficient choice that doesn't crowd your PCB, thanks to compact dimensions of 5.64 (L) x 4.82 (H) x 12.7mm (D).

Features & Benefits

• Nylon material withstands mechanical stress and resists corrosion, so you can be sure of a long service life
• Fire-retardant housing self-extinguishes in under 10 seconds to prevent the spread of flames

Applications

• Industrial automation
• IT networks
• Automotive manufacturing

How much does this unit weigh?

This assembly weighs only 0.2g, so it minimises strain on your infrastructure.
