22-01-2127, Molex, KK 254 Female Connector Housing, 2.54mm Pitch, 12 Way, 1 Row, Корпус разъема

Molex KK Range of 2695 Series Housings

This range of Series 2695 Connector Housings feature a 2.54 mm pitch and form part of the KK Interconnect system from Molex, which provide a simple and economical way to make multipole connections to printed circuit boards. When fitting the terminals into the housings it is essential that the Molex insertion tool is used for the correct fitting of these terminals. Please see engineering note for more details.

Features and Benefits

• 2.54 mm pitch
• Wire to board connections and fittings
• Natural (white) colour
• Single Row
• Housings 22-01-2xxx have friction lock ramps
• Housings 22-01-3xxx have friction lock ramps and polarizing ribs

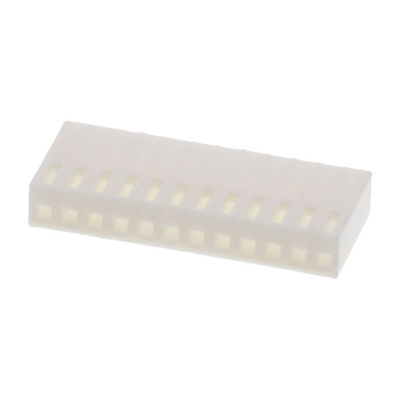

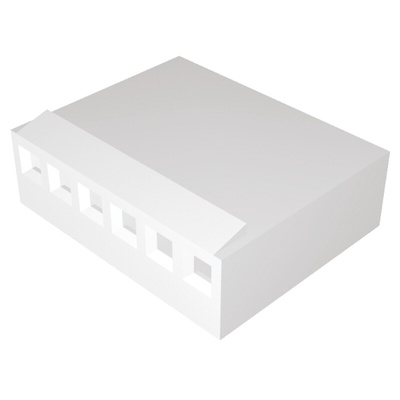

Molex Connector Housing, Nylon Construction, 1.27g Weight - KK 2695 Series - 22-01-2127

Are you looking for a way to shield cable ends and ensure safe signal transmission on your PCB? Go for this connector housing from Molex. It has a standard pitch of 2.54mm between conductors to keep short circuits at bay. A 12-way construction means you can handle multiple circuit functions, reducing your setup's complexity. The unit's nylon body gives you a two-for-one advantage by providing impact and heat resistance for use in harsh conditions as well as insulation to prevent electric shocks.

Features & Benefits

• Lock-to-mating part construction ensures a secure fit
• Self-extinguishes in under 10 seconds in the event of a fire, preventing the spread of flames
• 10 per pack keeps you in good supply

Applications

• Military equipment
• Robotics and automation systems
• Consumer electronics

What size is this connector housing?

It has compact dimensions of 31.04 (L) x 4.82 (W) x 12.7mm (D), so it slots neatly into setups with limited space.
