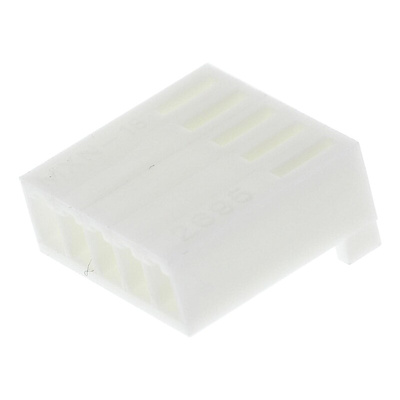

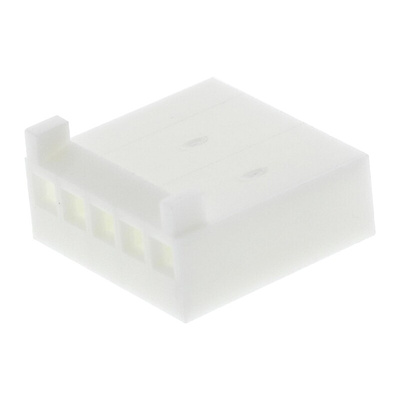

22-01-3057, Molex, KK 254 Female Connector Housing, 2.54mm Pitch, 5 Way, 1 Row, Корпус разъема

Molex Connector Housing, Nylon, 13.26mm Length - KK 254 Series - 22-01-3057

Choose this female connector housing from Molex to make secure wire connections to your PCB. It's an efficient choice that saves you space as it accommodates up to five contacts across a single row. A pitch of 2.54mm provides plenty of room for cables, so you're not limited to low-diameter wires. The unit's straight body orientation makes it easy to integrate into your setup.

Features & Benefits

• Compact dimensions of 13.26 (L) x 12.7 (D) x 4.82mm (W) for use in busy systems
• Nylon housing provides durability and resistance to mechanical stress for a longer service life
• 94V-0 flammability rating means burning stops in less than 10 seconds
• Features lock-to-mating-part technology to achieve a secure connection

Applications

• Consumer units
• Electrical services
• Industrial processing

Can I stack this device?

No, this unit isn't suitable for stacking.

Engineering Note for the Molex KK Range of Series 2695 Housings and associated Contacts

Datasheet

Line Drawing

Product Specification Sheet - KK 254 / .100
