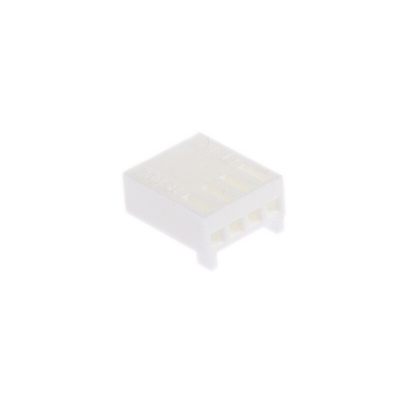

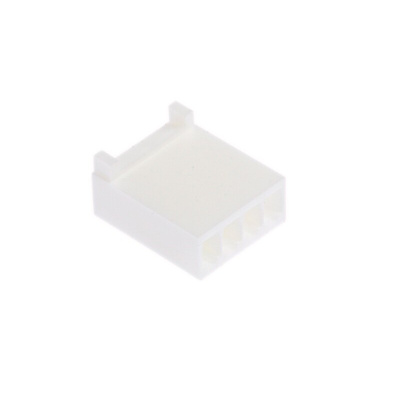

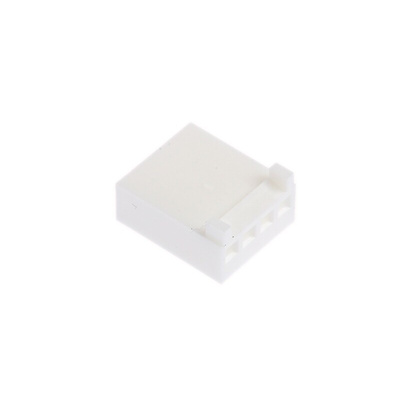

22-01-3047, Molex, KK 254 Female Connector Housing, 2.54mm Pitch, 4 Way, 1 Row, Корпус разъема

Molex Connector Housing, Nylon, 10.72mm Length - KK 254 Series - 22-01-3047

Looking for a device to secure and protect electrical wires in your PCB? Choose this connector housing from Molex. Four contacts and a wide pitch of 2.54mm make it easy to set up your system, with plenty of room for multiple cables with varying diameters. The straight body orientation and a single-row design ensure that the device incorporates efficiently into your setup. Its contacts are polarised to the mating part of the connection, making installation straightforward and error-free.

Features & Benefits

• 360g weight won't add excess load to your setup
• 94V-0 flammability rating means that in the event of fire, it extinguishes in 10 seconds
• Nylon housing provides strength and durability for longevity
• Compact dimensions of 10.72 (L) x 6.62 (W) x 12.7mm (D)

Applications

• Automotive industry
• Production lines
• Printed circuit boards

How secure are the connections of this device?

This unit incorporates a lock to mating part that offers a reliably stable connection.

Datasheet

Line Drawing

Product Specification Sheet - KK 254 / .100
