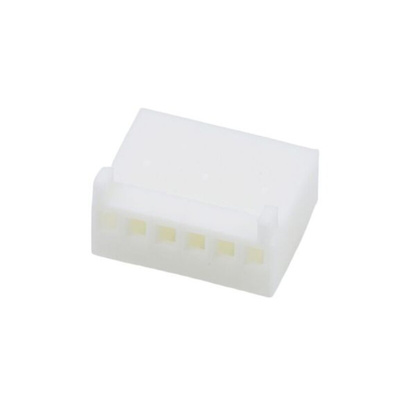

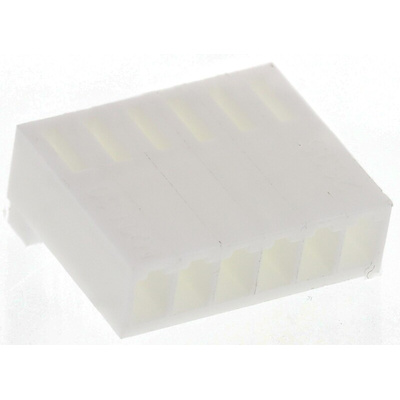

22-01-3067, Molex, 2695 Female Connector Housing, 2.54mm Pitch, 6 Way, 1 Row, Корпус разъема

Molex KK Range of 2695 Series Housings

This range of Series 2695 Connector Housings feature a 2.54 mm pitch and form part of the KK Interconnect system from Molex, which provide a simple and economical way to make multipole connections to printed circuit boards. When fitting the terminals into the housings it is essential that the Molex insertion tool is used for the correct fitting of these terminals. Please see engineering note for more details.

Features and Benefits

• 2.54 mm pitch
• Wire to board connections and fittings
• Natural (white) colour
• Single Row
• Housings 22-01-2xxx have friction lock ramps
• Housings 22-01-3xxx have friction lock ramps and polarizing ribs

Molex Connector Housing, 6 Ways, Nylon Construction - 2695 Series - 22-01-3067

Need to connect multiple circuits to your PCB? This connector housing from Molex is ideal, as it handles up to six contacts at once. Making connections are easy, thanks to a standard 2.54mm pitch that gives you plenty of room to manoeuvre. The unit's nylon construction ensures it's tough enough to handle the bumps and scrapes you get in tough industrial setups.

Features & Benefits

• Straight body orientation makes it easy to plug in and remove
• 0.6g weight won't strain your PCB
• Nylon material acts as a natural insulator to eliminate the risk of electric shocks

Applications

• Factory automation
• Robotics and electronics systems
• Consumer units

Does this product feature any safety benefits?

Yes. In the event of a fire, this connector housing self-extinguishes in under 10 seconds to prevent the spread of flames.

Engineering Note for the Molex KK Range of Series 2695 Housings and associated Contacts

Datasheet

Line Drawing
