22-01-3097, Molex, KK 254 Female Connector Housing, 2.54mm Pitch, 9 Way, 1 Row, Корпус разъема

Molex KK Range of 2695 Series Housings

This range of Series 2695 Connector Housings feature a 2.54 mm pitch and form part of the KK Interconnect system from Molex, which provide a simple and economical way to make multipole connections to printed circuit boards. When fitting the terminals into the housings it is essential that the Molex insertion tool is used for the correct fitting of these terminals. Please see engineering note for more details.

Features and Benefits

• 2.54 mm pitch
• Wire to board connections and fittings
• Natural (white) colour
• Single Row
• Housings 22-01-2xxx have friction lock ramps
• Housings 22-01-3xxx have friction lock ramps and polarizing ribs

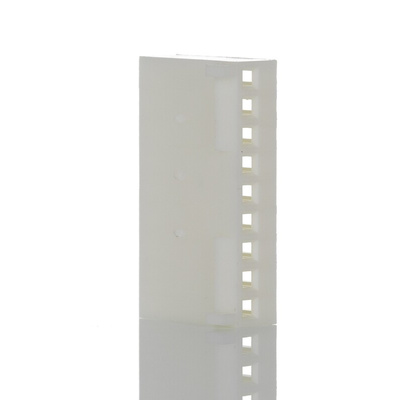

Molex Connector Housing, Cable Mounting, Nylon Construction - KK 254 Series - 22-01-3097

Get signals moving from A to B with this connector housing from Molex. It's a straightforward way to make stable wire-to-board connections as the friction-ramp design ensures mating is secure. Nine contacts are on hand to connect multiple circuits and support a complex setup – simply slot in crimp terminals to link components to your PCB. The unit's 2.54mm pitch is one of the most commonly used, making this a widely compatible option.

Features & Benefits

• Compact dimensions of 23.42 (L) x 4.82 (W) x 12.7mm (D) mean it's space-efficient
• Single-row format and straight-body orientation for easy access to contacts
• Long-lasting nylon construction resists abrasion, impacts and harsh temperatures, as well as corrosion

Applications

• Factory automation
• Automotive electronics
• Pharmaceutical manufacture

What type of connectors are compatible with the product?

This versatile connector housing is designed for use with Molex KK connectors, including those in the 6410 series (such as 670-1346).
