22-01-3087, Molex, KK 254 Female Connector Housing, 2.54mm Pitch, 8 Way, 1 Row, Корпус разъема

Molex KK Range of 2695 Series Housings

This range of Series 2695 Connector Housings feature a 2.54 mm pitch and form part of the KK Interconnect system from Molex, which provide a simple and economical way to make multipole connections to printed circuit boards. When fitting the terminals into the housings it is essential that the Molex insertion tool is used for the correct fitting of these terminals. Please see engineering note for more details.

Features and Benefits

• 2.54 mm pitch
• Wire to board connections and fittings
• Natural (white) colour
• Single Row
• Housings 22-01-2xxx have friction lock ramps
• Housings 22-01-3xxx have friction lock ramps and polarizing ribs

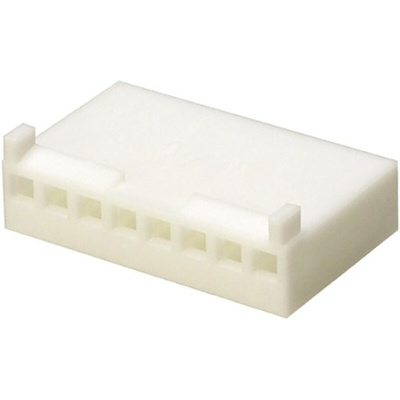

Molex Female Connector Housing, 8 Way, 1 Row - 2695 Series - 22-01-3087

Protect your wire-to-PCB (printed circuit board) connector terminals from dust and other particles with this tough housing from Molex. It features eight contacts for up to eight connections and has fully isolated receptacles that prevent debris from interfering with the connection. Friction lock ramps fasten the terminals securely into position, so they won't shake loose in the event of heavy vibration or shock. For ease of installation, use the Molex insertion tool (710-6528) when inserting your terminal into the housing to ensure your terminals are correctly positioned.

Features & Benefits

• Nylon material is flame-retardant for improved fire safety
• Low halogen content reduces the risk of toxic fumes in the event of a fire
• Straight body orientation for ease of connection and organisation of wires
• Compact pitch of 2.54mm to save space on your PCB

Applications

• Computer systems
• Data processing
• Transportation industry
• Marine operations

What kind of terminals will this housing accommodate?

This housing is designed to accommodate a range of crimp terminals and PCB headers in the Molex KK 254 series.
