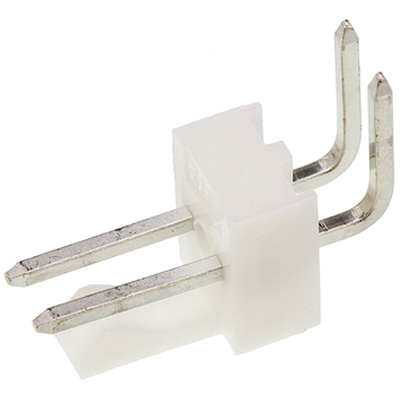

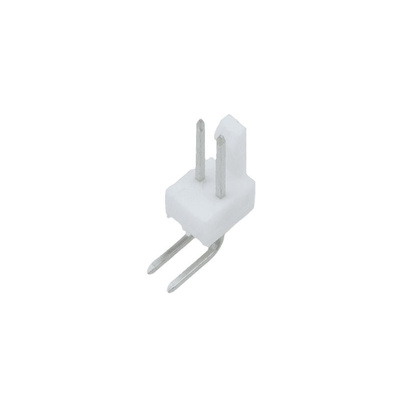

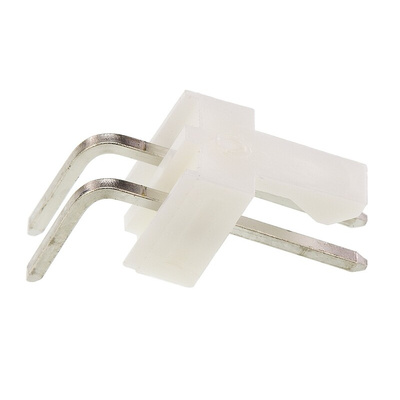

22-05-3021, Molex KK 254 Series Right Angle Through Hole Pin Header, 2 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

90° PCB Header with Friction Lock, 7478 Series

A range of KK 254, 7478 Series, Right Angle PCB Pin Headers with Friction Lock with Tin plated square pins.
The wafer material is Nylon UL 94V-0 White for these KK 254, 7478 Series, Right Angle PCB Pin Headers and allow end to end stacking.
The KK 254, 7478 Series, Right Angle PCB Pin Header mates with 2695 Series Housings with Lock, stock number 679-5284 typical.

Molex Pin Header, Tin-Plated Brass Contacts, Through-Hole Termination - KK 254 Series - 22-05-3021

Need a middleman to link wiring to your circuit board? Go for this pin header from Molex. Its two-contact configuration gives you dual-circuit control and reduces your system's wiring needs, making for a tidy setup. Nylon housing provides reliable insulation to keep you safe from electrical hazards. Thanks to the unit's through-hole mounting style, you can achieve a secure fit to your circuit board that holds out against vibration.

Features & Benefits

• Unit is stackable, allowing you to expand and customise your circuit without the need for extensive redesign
• Tin plating resists corrosion to ensure long-term performance

Applications

• Security and surveillance systems
• Factory automation
• Electrical workshops

Is this header flame-resistant?

Yes, it stops burning in 10 seconds or less in the event of a fire, so it helps to prevent the spread of flames.
