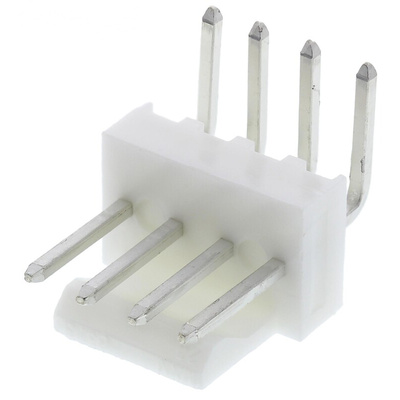

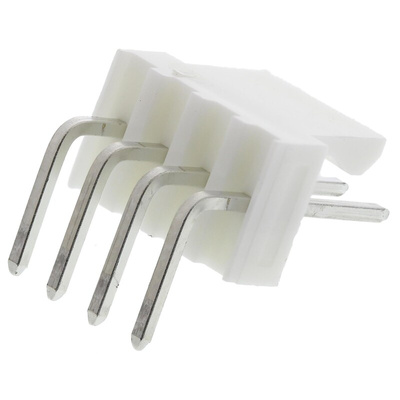

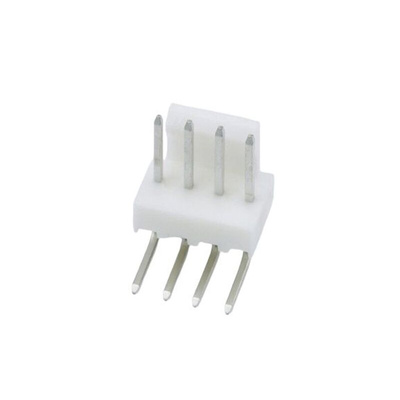

22-05-3041, Molex KK 254 Series Right Angle Through Hole Pin Header, 4 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

90° PCB Header with Friction Lock, 7478 Series

A range of KK 254, 7478 Series, Right Angle PCB Pin Headers with Friction Lock with Tin plated square pins.
The wafer material is Nylon UL 94V-0 White for these KK 254, 7478 Series, Right Angle PCB Pin Headers and allow end to end stacking.
The KK 254, 7478 Series, Right Angle PCB Pin Header mates with 2695 Series Housings with Lock, stock number 679-5284 typical.

Molex Pin Header, Wire-to-Board Connector System Type, Tin-Plated Brass Contact Material - KK 254 Series - 22-05-3041

When you need a reliable electrical connection to your PCB, choose this pin header from Molex. The compact, partially shrouded design minimises bulk on the board, while the right-angle design lets you make the most of available space in a crowded location. Thanks to secure through-hole installation, you can be sure of a solid fix that's quick to achieve and withstands vibration.

Features & Benefits

• Standardised 2.54mm pitch offers easy integration into your existing equipment
• Polarised to the mating part to avoid installation errors
• 250V maximum voltage is compatible with the UK mains supplies for flexible use

Applications

• Industrial electronics
• Vehicle manufacturing
• Telecommunications industry

Is this product fire-safe?

Yes – the flame-retardant nylon resin material is self-extinguishing in under 10 seconds to help reduce the spread of fire.
