22-23-2021, Molex KK 254 Series Straight Through Hole Pin Header, 2 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

Straight Header, 6373 Series

Mates with 2695; 6471, 7880; 4455 and 7720 Series housings

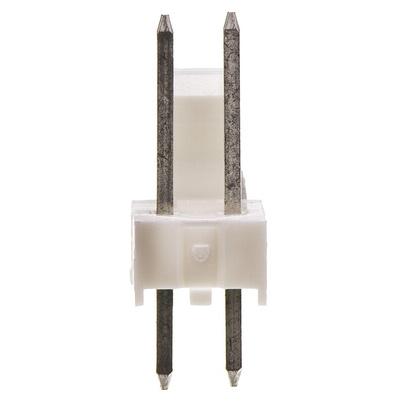

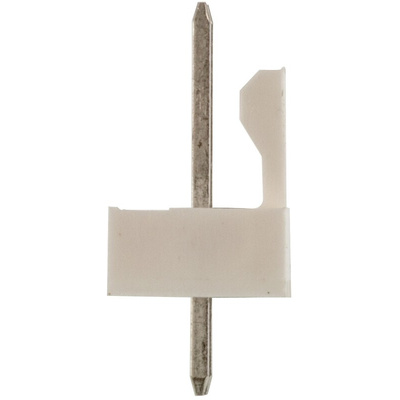

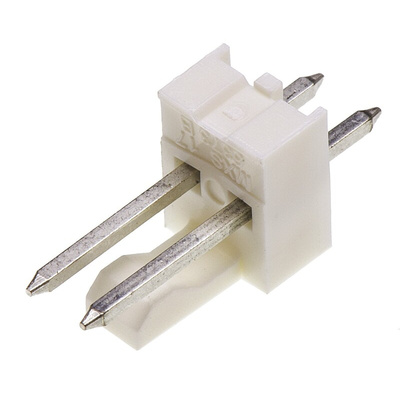

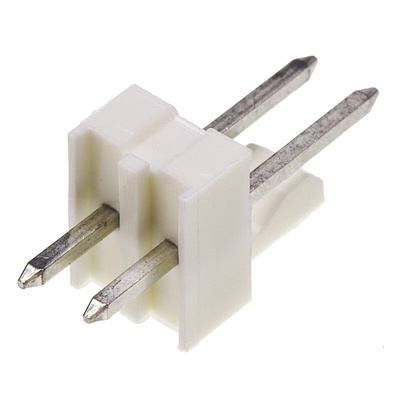

Molex PCB Straight Pin Header, 2.54mm Pitch, 2 Way - 6373 Series - 22-23-2021

This straight pin header from Molex connects two wires to a PCB (printed circuit board). It has a compact 2.54mm pitch, which locks it securely in place on your PCB to create a lasting connection. The header is built for wave soldering onto a PCB, which makes for a secure connection and reliable performance even in applications that are subject to heavy vibrations. Each pin accepts currents up to 4A and has a maximum power capacity of 250V.

Features & Benefits

• Tin contact plating for resistance to moisture and buildups of rust
• Brass contact material is highly conductive
• Robust nylon resin housing material is long-lasting and keeps contacts securely in place
• Low-halogen construction reduces toxicity levels in the event of an electrical fire

Applications

• Fire alarms and smoke detectors
• Multi-function scanners
• Data and communications
• Interior lighting
• Portable diagnostics

Will this straight pin header put stress on a PCB?

No. At only 0.222g, this straight pin header is very lightweight, so it doesn't add any stress or pressure even to a small PCB.
