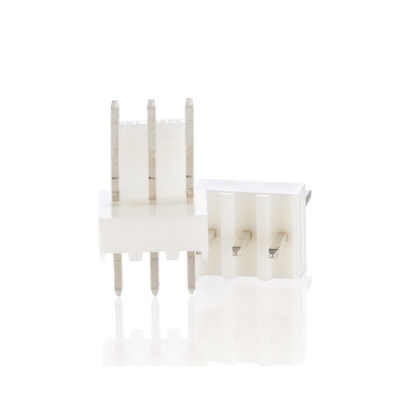

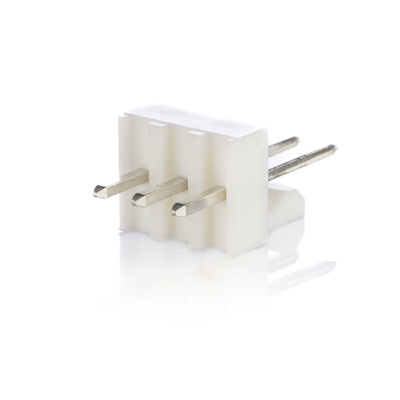

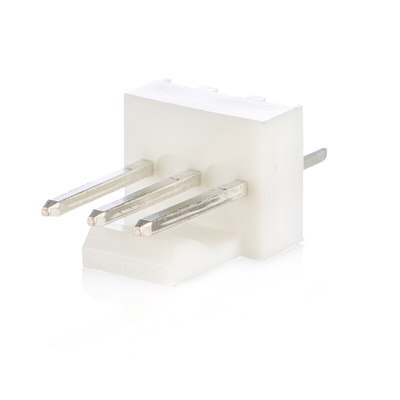

22-23-2031, Molex KK 254 Series Straight Through Hole Pin Header, 3 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

Straight Header, 6373 Series

Mates with 2695; 6471, 7880; 4455 and 7720 Series housings

Molex PCB Straight Pin Header, 2.54mm Pitch, 3 Way - 6373 Series - 22-23-2031

Connect three wires securely to a PCB (printed circuit board) with this straight pin header from Molex. Its narrow 2.54mm pitch suits low-power and signal applications, and the unit accommodates up to 4A per contact with a total capacity of 250V. The three pins lock into place on your PCB and are designed to be soldered down to keep the connection reliable and prevent accidental disconnection. This means you can use the header even with equipment where high levels of vibration are likely.

Features & Benefits

• Fire-resistant construction means any burning in the unit stops after just 10 seconds
• Tin-plated brass contacts have high corrosion resistance to prevent wear over time
• Nylon housing material is tough and resists chemical contamination, for long life
• Low halogen content prevents toxic fumes in the event of a fire outbreak

Applications

• Medical equipment
• Telecommunications
• Automotive equipment
• Security systems

Does this straight pin header connect to other Molex products?

Yes, this straight pin header mates with Molex crimp housing and PCB connectors to keep wires secure and well insulated when you connect them to your PCB.
