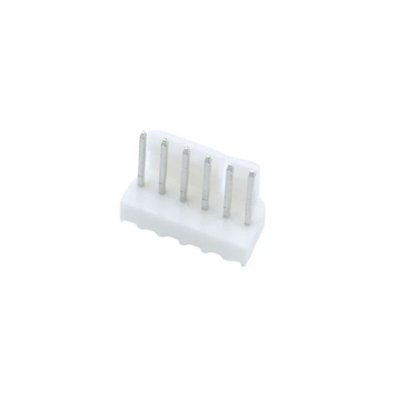

22-23-2061, Molex KK 254 Series Straight Through Hole Pin Header, 6 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

Straight Header, 6373 Series

Mates with 2695; 6471, 7880; 4455 and 7720 Series housings

Molex Pin Header, Friction Locking, 250V Voltage Rating - 6373 Series - 22-23-2061

Securely slot your system together with this pin header from Molex. As it plugs directly into a housing (such as 679-5331), set-up is quick. Fitting the component to your board is no trouble, thanks to its simple through-hole mounting method. There's no need to worry about movement when soldering, as a friction lock keeps it in place. Thanks to the header's insulating nylon construction, there's no risk of an electrical fault giving you a shock or damaging connected equipment.

Features & Benefits

• Conductive tin-plated brass contacts ensure reliable signal transfer
• Standard 2.54mm pitch for easy compatibility
• Service life of 25 cycles reduces the need for replacement

Applications

• Automated assembly lines
• Packaging industry
• Vehicle chargers

What current rating does this header have?

This unit carries up to 4A per contact, so it safely handles low-power applications.

Datasheet

Datasheet

KK 100 Header Datasheet

Line Drawing
