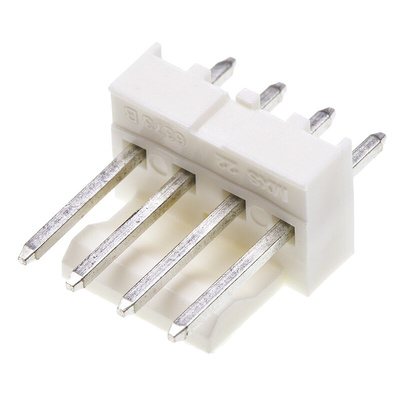

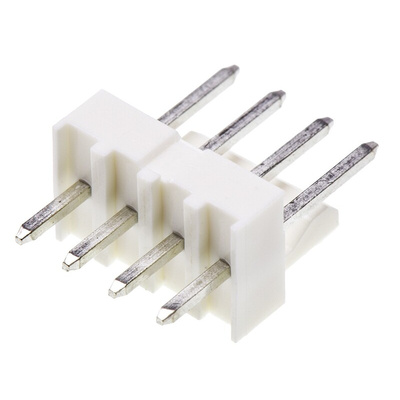

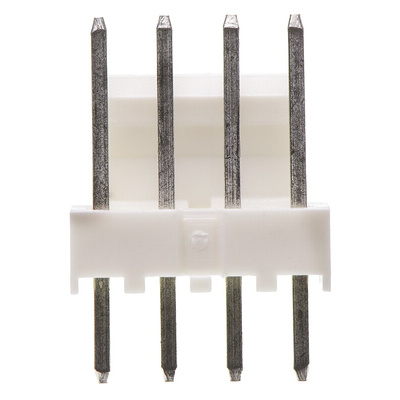

22-23-2041, Molex KK 254 Series Straight Through Hole Pin Header, 4 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

Straight Header, 6373 Series

Mates with 2695; 6471, 7880; 4455 and 7720 Series housings

Molex Straight Pin Header, 4 Way, 1 Row - 6373 Series - 22-23-2041

Easily establish power or data connections on your PCBs (printed circuit boards) with this reliable straight pin header from Molex. The unit has four pins, allowing you to make multiple connections using a single block. Simply solder this wire-to-board 2.54mm pitch connector system onto your PCB to make connections quickly. Each pin can be used for either data or power, depending on your application. You can confidently use this pin header for both residential and commercial electrical appliances.

Features & Benefits

• Tin-plated brass contacts are highly conductive to provide interference-free data or power signals
• Nylon shell won't burn for more than 10 seconds, so it's not likely to cause a fire or act as a fuel source during a fire
• Through-hole mounting for simple installation

Applications

• Automated processes
• Internal computers in vehicles
• Connections in mobile devices

What's the pitch of a connector?

The pitch on pin headers refers to the distance measured from the centre of one pin to the centre of the next. It's important to know which pitch a connector has so you can connect the correct cable – such as a ribbon cable for a 2.54mm pitch.

Datasheet

Datasheet

KK 100 Header Datasheet

Line Drawing

Specification Sheet - KK 254/.100 Wire-to-Board & Board-to-Board Connector System
