22-23-2051, Molex KK 254 Series Straight Through Hole Pin Header, 5 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

Straight Header, 6373 Series

Mates with 2695; 6471, 7880; 4455 and 7720 Series housings

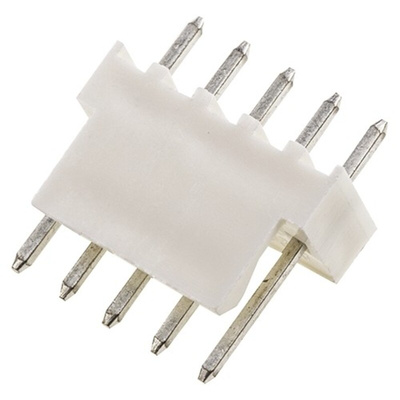

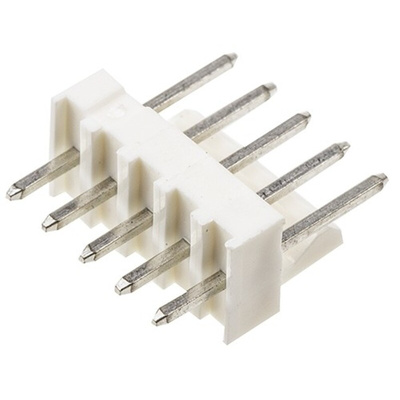

Molex Pin Header, Male, 5 Way - KK 254 Series - 22-23-2051

Use this straight pin header from Molex to make simple and efficient connections on your PCB board. For safe and reliable installation, its pins are partially shrouded to make sure mating is correct. As the pins are made of brass and tin contact plating, you can be sure of reliable conductivity. This header uses a through-hole mounting type, meaning it securely fits into the PCB with the aid of soldering. It's suitable for wire-to-board connections in signal applications.

• Precise pitch of 2.54mm prevents the accidental connection of two pins during soldering
• Maximum current of 4A for use in low-powered to medium-powered applications

Applications

• Medical equipment
• Automotive industry
• Telecommunications applications
• White goods

Is this pin header flame retardant?

Yes, this unit is flame retardant and won't burn for more than 10 seconds, so you can be sure it won't contribute to a workplace fire.

Datasheet

Datasheet

KK 100 Header Datasheet

Line Drawing

Product Specification Sheet - KK 254 / .100 Wire-to-Board & Board-to-Board Connector System
