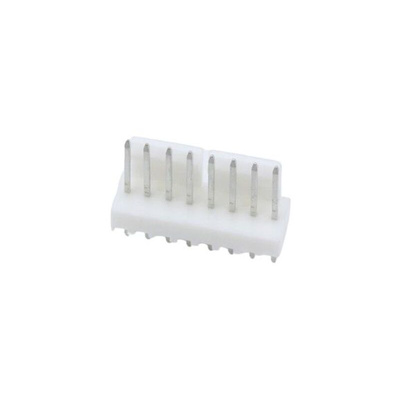

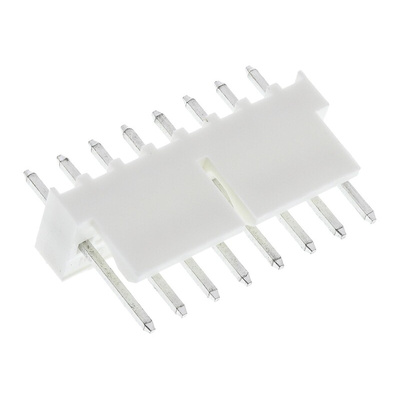

22-23-2081, Molex KK 254 Series Straight Through Hole Pin Header, 8 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

6795606
Номер производителя: 22-23-2081Производитель: Molex
Цена за шт. (норма упаковки 10 шт)
163.80 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Straight Header, 6373 Series

Mates with 2695; 6471, 7880; 4455 and 7720 Series housings

Molex KK 254 Series Pin Header, Tin Contact Plating, 4.0A - 22-23-2081

This Molex pin header is an essential component in the field of electronics and electrical engineering. With a 2.54 mm pitch and a high 250V voltage rating, this pin header offers reliability and efficiency in various applications. It is designed to provide a secure wire to board connection with its brass contact pins and tin plating. The through hole mounting feature ensures easy installation, making it a versatile choice for both professionals and hobbyists.

Features & Benefits

• Brass contacts pins for reliable conductivity
• Tin plated for enhanced durability
• Through hole mounting for easy installation
• 2.54 mm pitch for compatibility with various applications
• 250V voltage rating for safe operation

Applications

• Ideal for signal transmission in automation systems
• Perfect for wire-to-board connections in electronic devices

Can it handle high voltage applications?

Yes, the Molex pin header with 250V voltage rating is suitable for high voltage applications.

Will it provide a secure connection for wire-to-board setups?

Yes, the brass contact pins ensure a reliable and stable connection.

Is it easy to install?

Yes, the through hole mounting feature makes installation quick and hassle-free.

Can it be used in automation systems?

Yes, the pin header is perfect for signal transmission in automation setups.

Is it compatible with various electronic devices?

Yes, the 2.54 mm pitch makes it versatile for different electronic applications.

Техническая спецификация
pdfKK 100 Header Assembly Friction Lock Solid Body Drawing
pdfDatasheet
pdfKK 100 Header Datasheet
pdfLine Drawing
Длин хвостового штыря:
3.56мм
Защищенный/Незащищенный:
Unshrouded
Кол-во контактов:
8
Количество рядов:
1
Концевая заделка:
Припой
Материал контактов:
Латунь
Номинал тока:
4.0A
Номинальное напряжение:
500 В
Ориентация корпуса:
Прямой
Покрытие контактов:
Олово
Род:
Male
Серийный номер:
6373
Серия:
KK 254
Система соединителя:
Wire to Board
Тип монтажа:
Сквозное отверстие
Шаг:
2.54мм
