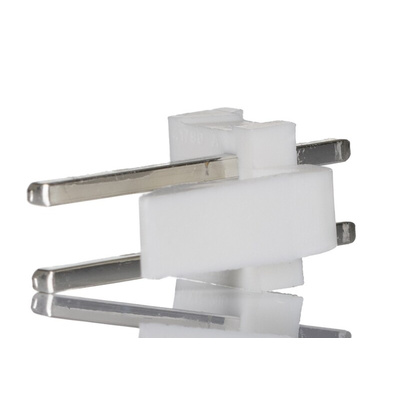

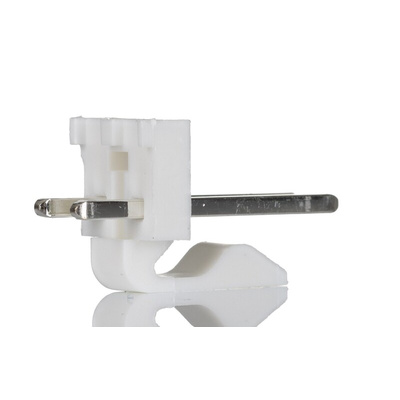

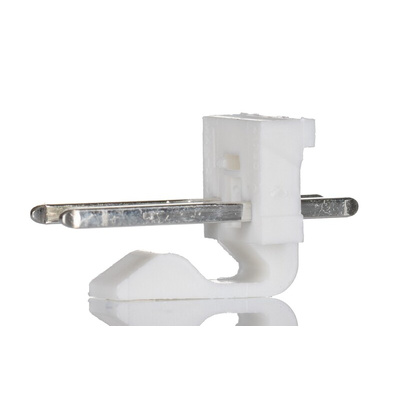

26-60-4020, Molex 41791 Series Straight Through Hole Pin Header, 2 Contact(s), 3.96mm Pitch, 1 Row(s), Unshrouded

Vertical headers, 41791 Series

Mates with 2139; 3069; 6442 and 41695 Series housings and 2145 and 41815 Series PC Board connectors.

Note

Stock number 670-3118 is a 3 way with circuit 2 voided.

Molex Pin Header, Vertical Orientation, 3.56mm PC Tail Length - 41791 Series - 26-60-4020

Use this pin header from Molex to get signals on the move through your PCB. After mounting it via the through-hole method, you can connect up to two circuits with a 7A maximum current per contact using the unit's built-in pins. As it copes with voltages as high as 600V, you can rest assured it's up to handling the demands of a powerful electrical system. Fire safety is taken care of too, as the housing self-extinguishes in fewer than 10 seconds.

Features & Benefits

• Comes in a pack of 10 to cover complex setups
• Weight of ±0.75g to minimise strain on your PCB
• Compatible with AC or DC voltages, so you can use it whatever the supply

Applications

• Automation and control networks
• Healthcare industry
• Lighting systems
• Consumer electronic goods

What temperature range can this unit operate in?

This product does its job without a hiccup in temperatures between -40°C and +80°C.

3.96mm Molex KK Range

Datasheet

Datasheet

Line Drawing
