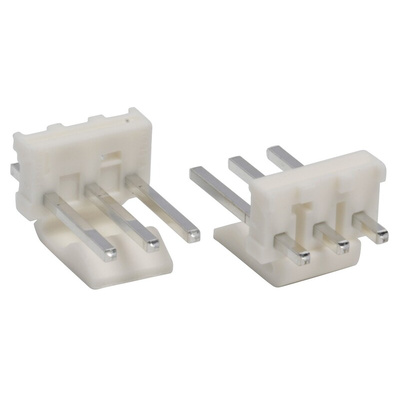

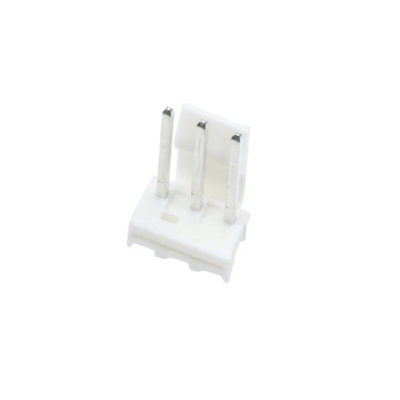

26-60-4030, Molex KK 396 Series Straight Through Hole Pin Header, 3 Contact(s), 3.96mm Pitch, 1 Row(s), Unshrouded

Vertical headers, 41791 Series

Mates with 2139; 3069; 6442 and 41695 Series housings and 2145 and 41815 Series PC Board connectors.

Note

Stock number 670-3118 is a 3 way with circuit 2 voided.

Molex Pin Header, Polyester Housing, Through-Hole Mounting - KK 396 Series - 26-60-4030

For fuss-free connection of wires to your circuit board, pick this straight pin header from Molex. It has three contacts to give you multi-component control, simplifying the wiring needs of your setup. The polyester housing does double duty by providing impact protection in harsh environments and insulation against electrical hazards. Through-hole mounting ensures a firm hold on your board, which comes in handy if your system's prone to vibration.

Features & Benefits

• Tin-plated brass contacts resist wear and corrosion to deliver long-lasting service
• Pitch of 3.96mm provides safe spacing between contacts to prevent short circuits
• Header is polarised to its mating part to prevent incorrect connection

Applications

• Consumer electronics
• Medical equipment
• Transportation industry

Is this header flame-resistant?

Yes, this unit stops burning in 10 seconds or less in the event of a fire, so it reduces the spread of flames.

3.96mm Molex KK Range

Datasheet

Datasheet

Line Drawing
