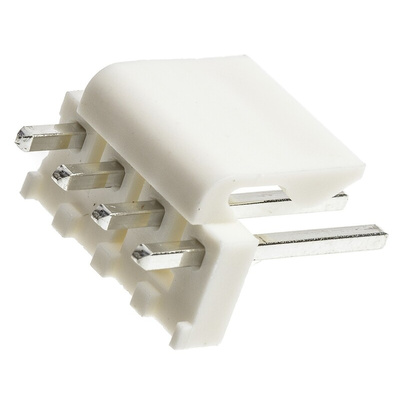

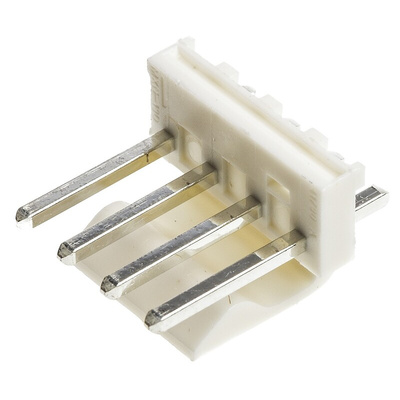

26-60-4040, Molex KK 396 Series Straight Through Hole Pin Header, 4 Contact(s), 3.96mm Pitch, 1 Row(s), Unshrouded

Vertical headers, 41791 Series

Mates with 2139; 3069; 6442 and 41695 Series housings and 2145 and 41815 Series PC Board connectors.

Note

Stock number 670-3118 is a 3 way with circuit 2 voided.

Molex Pin Header, 7A Maximum Current Per Contact, Vertical Orientation - 41791 Series - 26-60-4040

When you want to join a circuit to your PCB, this Molex pin header gets the job done. By soldering it to your PCB and attaching a compatible female header, you can link up to four circuits in a jiffy. The unit comes in a pack of 10, so you'll have plenty on hand for complex setups. With an operating temperature range between -40°C and +80°C, it's a hardwearing option that's ideal for harsh work areas.

Features & Benefits

• Strong polyester body for a long and reliable service life
• Weighs just 1.5g to limit the strain on your setup
• Through-hole mounting style ensures a sturdy connection to your PCB

Applications

• Computer networks
• Manufacturing industry
• Telecommunications equipment

Is this product suitable for high-voltage electrical setups?

Yes. This pin header has a maximum voltage rating of 600V AC/DC, so it's more than capable of handling high-voltage electrical setups.

3.96mm Molex KK Range
