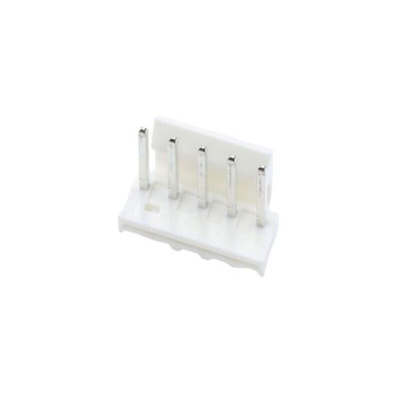

26-60-4050, Molex KK 396 Series Straight Through Hole Pin Header, 5 Contact(s), 3.96mm Pitch, 1 Row(s), Unshrouded, Штыревой разъем

Vertical headers, 41791 Series

Mates with 2139; 3069; 6442 and 41695 Series housings and 2145 and 41815 Series PC Board connectors.

Note

Stock number 670-3118 is a 3 way with circuit 2 voided.

Molex Pin Header, Brass Contacts, Polyester Housing - KK 396 Series - 26-60-4050

Looking for a trusty go-between to link wires to your board? Go for this PCB header from Molex. Its brass contacts are highly conductive, assuring you of reliable signal transmission. The body is made of polyester, which is an effective insulator that shrugs off abrasion and bumps. The unit has a lock-to-mating-part feature to make sure it gets a firm hold on compatible housings. Its 7A current rating makes it the right choice for light-duty applications. To ensure an accurate connection, it's polarised, so you can't mismate it.

Features & Benefits

• Device is stackable, letting you easily expand and customise your circuit
• Stops burning in 10 seconds or less in the event of a fire to limit the spread of flames

Applications

• Consumer electronics
• Telecommunications networks
• Packaging facilities

How durable is this pin header?

The unit withstands up to 25 mating cycles, so you can rely on it for long-term performance.

3.96mm Molex KK Range
