39-00-0049, Molex Mini-Fit Series Male Crimp Terminal, 28AWG Min, 22AWG Max, Контакты

Mini-Fit Crimp Contacts

Molex Mini-Fit pin and receptacle crimp contacts are connector contacts for use in the Mini-Fit Junior plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. These Mini-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility.

Features and Benefits

Features and Benefits

- Multiple points of contact for reliable electrical connection

- Locking tangs for secure connection in housing

- Range of platings and wire

Applications

- Automotive

- Industrial

- Industrial Automation

- Medical

- Communications and Networking

- Consumer Electronics

More Information :

The extraction tool for this range of crimp connector contacts is 2155900

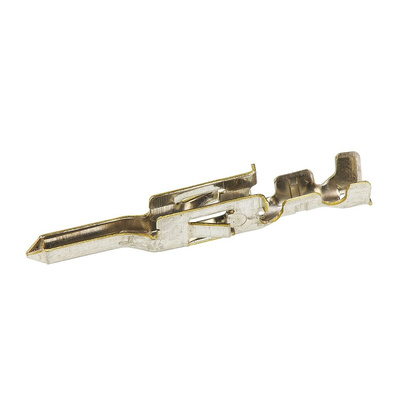

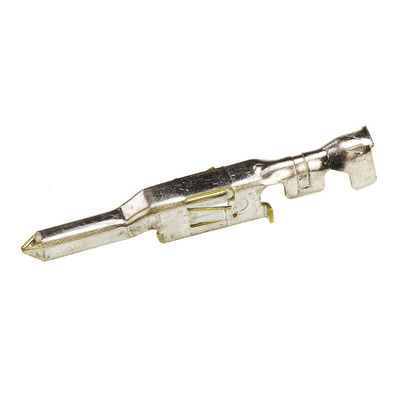

Molex Male Crimp Terminal, 28 to 22AWG, 9A Current Rating - Mini-Fit Series - 39-00-0049

Use this crimp terminal from Molex to terminate a cable for safe power and wire-to-wire connection. Thanks to its maximum voltage capacity of 600V and current rating of 9A, you can safely use this unit in most electrical systems. Squared sides enable multiple points of contact and support a stable electrical connection. As the terminal also features locking tags, it's protected against accidental disconnection when inserted into a connector housing. The brass contact material is resistant to wear and impact so it can withstand heavy-duty applications.

• Fits a broad wire size range between 28 and 22AWG for versatility
• Tin contact plating to withstand demanding operations
• Maximum mating capacity of 30 cycles for reliable long-term use

Applications

• Medical equipment
• Communications and networking devices
• Automated systems

What type of connector housing can I use with this crimp terminal?

It's compatible with connector housings from the Mini-Fit Jr (319-1418), Mini-Fit TPA (821-5607)and Mini-Fit BMI (670-4543) ranges for flexible assembly. A connector housing lets you plug your terminal into a PCB and offers protection from contaminants.
