39-01-2066, Molex, Mini-Fit Jr Male Connector Housing, 4.2mm Pitch, 6 Way, 2 Row, Корпус разъема

Molex Mini-Fit Junior Crimp Receptacle and Plug Housings

Mini-Fit Junior 4.2 mm pitch connector housings form part of the Mini-Fit Junior power connector’s interconnection system. Molex connector housings can be used in applications that require design flexibility. These types of fittings are an essential component that offer protection for the connection it is housing.

Features and Benefits

• Handle Up to 13A current per circuit, a great solution for high current connectors
• Fully isolated terminals for protection against debris and damage caused by mishandling
• Polarization and keying to prevent mismating ad misalignment
• Positive locking mechanism for secure mating connection prevents accidental unmating caused by excessive shock or vibration
• Audible click for mating confirmation
• Available with a flame retardant UL94V-0 or UL94V-2 housing material
• Accepts standard Mini-Fit and Mini-Fit Plus crimp terminals
• Wire to wire and wire to board applications

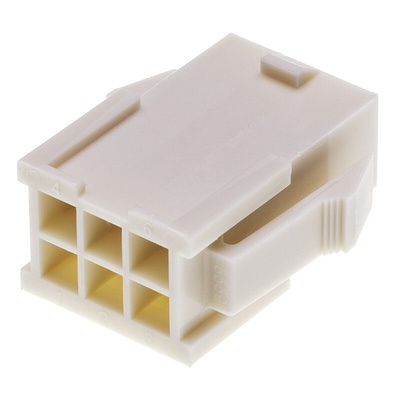

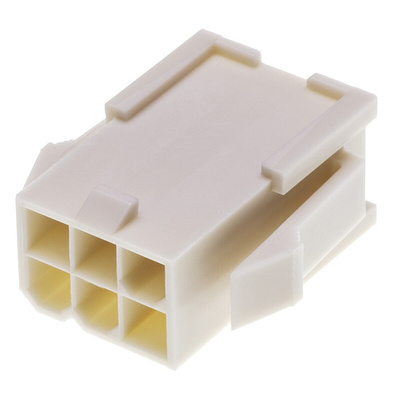

Molex Male Connector Housing, 4.2mm Pitch, 6 Way - Mini-Fit Jr Series - 39-01-2066

Safely contain your high current connectors in this six-way plug housing from Molex. It handles maximum currents of 13A per circuit for use in demanding consumer and industrial applications such as vehicle control modules, gaming machines and robotics. You'll know the crimp connectors are correctly slotted into a segment thanks to an audible clicking noise, and a positive locking mechanism prevents disconnection. The unit is segmented to keep crimp connectors separated and it's made from non-conductive nylon to isolate each terminal. This thermoplastic case material is resistant to wear, making for a durable component.

• Panel mounting ears for easy and secure clip-in fitting
• Wide operating temperature range between -40°C and +105°C for use in extreme cold and hot conditions
• Polarized mating section to minimise circuit assembly errors

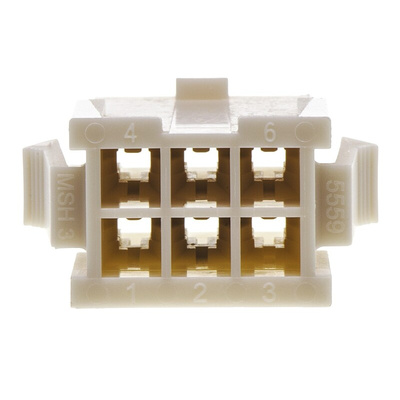

• Labelled segments for quick circuit identification

Applications

• Commercial vehicles
• Industrial automation equipment
• Consumer appliances
• Medical technology

Which crimp terminals is this connector housing compatible with?

This connector housing accepts standard Mini-Fit and Mini-Fit Plus crimp terminals to give you flexibility over contact materials and wire sizes for your circuit.
