43020-0201, Molex, Micro-Fit 3.0 Male Connector Housing, 3mm Pitch, 2 Way, 2 Row, Корпус разъема

Molex Micro-Fit Connector Housings – Series 43025 & 43020

The 4305 and 43020 series from Molex features 3.0 mm pitch connector housings, they form part of the unique, compact Micro- Fit connector system. A typical application for a connector housing is to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connector and connection it is housing.

Features and Benefits

• Housings are black in colour
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board

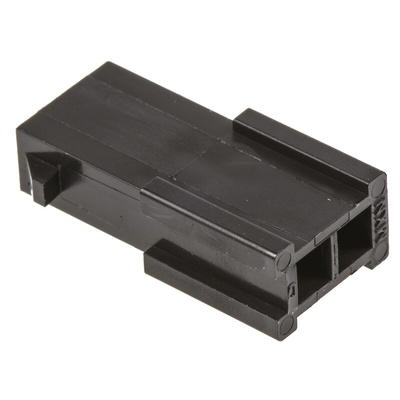

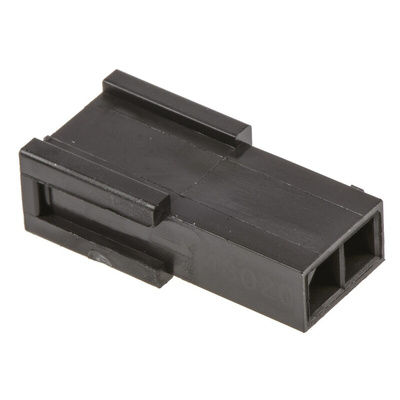

Molex Micro-Fit 3.0 Male Connector Housing, 3mm Pitch, 2 Contacts - 43020 Series - 43020-0201

Protect your electrical setup with this male connector housing from Molex. It's a simple choice for connectors that have been mounted onto printed circuit boards (PCBs). You can use the unit as a casing around connectors linking different printed circuit boards or for a cable connection to a PCB. It has a 3mm pitch and because it's a 2-way, 2-row connector housing, it lets you establish more than one connection.

• Positive locking mechanism enables a secure and reliable connection
• Fully-polarised component prevents the mismating and misalignment of connection points
• Mounting ears let you use it with panel-mount applications
• Low halogen content limits toxic gas emissions should the component be exposed to heat sources
• Versatile unit for wire-to-wire and wire-to-board installations

Applications

• Medical imaging equipment
• Industrial automated processes
• Laptops and desktops
• Automotive connections

Is this connector housing durable and can I use it in demanding environments?

Yes, this item is durable as it's made from nylon, which is resistant to both chemicals and corrosion. A wide operating temperature, which ranges from -40°C to +105°C, assures you that this connector housing is suitable for use in heavy-duty environments.
