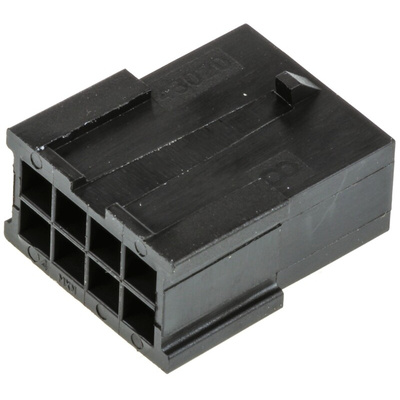

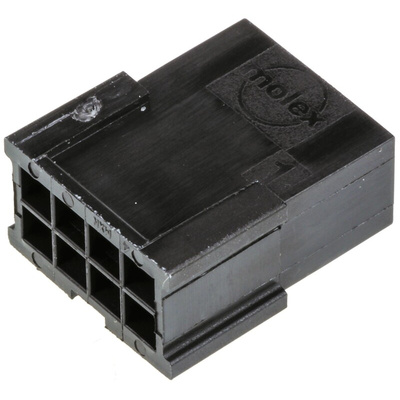

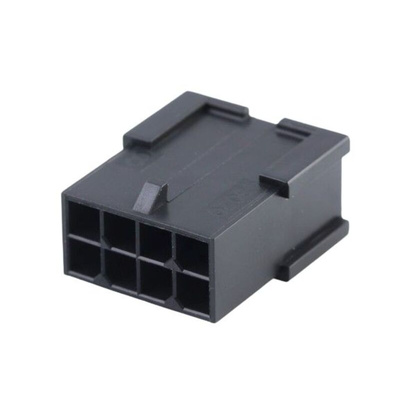

43020-0801, Molex, Micro-Fit 3.0 Male Connector Housing, 3mm Pitch, 8 Way, 2 Row, Корпус разъема

Molex Micro-Fit Connector Housings – Series 43025 & 43020

The 4305 and 43020 series from Molex features 3.0 mm pitch connector housings, they form part of the unique, compact Micro- Fit connector system. A typical application for a connector housing is to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connector and connection it is housing.

Features and Benefits

• Housings are black in colour
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board

Molex Connector Housing, Straight Body Orientation, 5A Maximum Current - Micro-Fit 3.0 Series - 43020-0801

Keep your electrical connections safely under wraps with this connector housing from Molex. You can use it to link eight circuits to a PCB, so it cuts out the hassle of mounting multiple housings. A low mating force of 7N per circuit makes light work of connection and speeds up your wiring tasks. As the unit locks to a compatible part in the Micro-Fit 3.0 series, you can rest assured of a durable and reliable connection.

Features & Benefits

• Flame-retardant to reduce the risk of a fire spreading
• Keying system prevents mating with mismatched parts
• Copper contacts ensure optimal electrical conductivity

Applications

• Consumer electronics
• Industrial automation
• Medical equipment
• Data centres

Does this connector housing have isolated contacts?

Yes. To minimise the risk of hazardous arcing, this terminal has fully isolated contacts on each side.

Molex Micro-Fit 3.0 Series
