43640-0201, Molex, Micro-Fit 3.0 Male Connector Housing, 3mm Pitch, 2 Way, 1 Row, Корпус разъема

Molex Micro-Fit Connector Housings – Series 43645 & 43640

The 43645 and 43640 series from Molex feature 3.0 mm pitch connector housings, they form part of the compact Micro-Fit connector system. They are typically used for wire to wire or wire to board connections and are ideal for use in a number of applications including Automotive, Electronics, Medical, Communications and Telecommunications.

Features and Benefits

• 3.0 mm pitch
• Housings are black in colour
• Positive locking for a secure connection
• Polarisation to ensure accurate mating
• Panel mounting plugs fitted with ears, enabling them to be used in cable mounting applications
• Single Row
• UL 94V-0 flammability rating

Note

Receptacle accepts female contacts and plug accepts male contacts.
Manufactures Part Numbers 43645-xx08 are Glow Wire Capable.

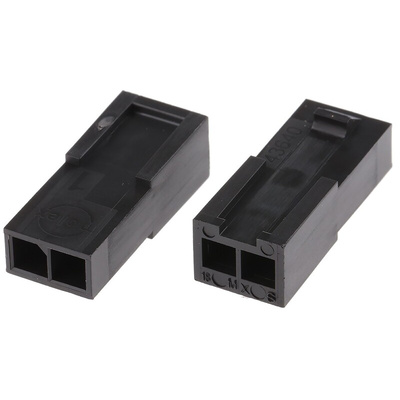

Molex Micro-Fit 3.0 Male Connector Housing, 3mm Pitch, 2 Contacts - 43640 Series - 43640-0201

Use this male connector housing from Molex to secure and protect your electronic and electrical connections. It's a receptacle that fits onto printed circuit boards (PCBs) or wires to establish reliable connections between different applications. The 3mm-pitch casing is a simple device that accommodates two contacts in one row. You can be sure that the robust polyester material can withstand the chemicals, heat and corrosive found in industrial and commercial settings. This means it effectively protects and prolongs the lifespan of your delicate connections.

• If exposed to flames, the component will stop burning within 10 seconds and won't contribute to the spread of fire
• Versatile housing can be used for wire-to-wire and wire-to-board applications
• Polarisation ensures contacts are correctly mated and aligned to prevent mismatches and faulty connections

Applications

• Automotive industry
• Electronic applications
• Medical equipment

How do I know a connection is secure when using this connector housing?

This connector housing from Molex has a positive locking mechanism that secures the connectors and contacts to ensure reliable signal transmission.

Can I use this connector housing for heavy-duty applications?

This connector housing operates in temperatures ranging from -40°C to +105°C, so it's a suitable choice for use in heavy-duty environments.
