50-57-9002, Molex, SL Female Connector Housing, 2.54mm Pitch, 2 Way, 1 Row, Корпус разъема

Molex SL 70066 Series Connector Housings

The Stackable Linear (SL) 70066 Series of 2.54mm pitch receptacle connector housings from Molex have been designed for low power and wire to board and wire to wire applications across a number of different industries. The SL range offers both flexibility in the design and configuration fittings and can be used in high vibration environments.

Features and Benefits

• 2.54mm pitch
• 2 to 25 circuits
• Dual and single row housing
• High temperature headers enable the use of reflow ovens in fixing headers to the PCB
• Black in colour
• Stackable housing

Note

For Version D see stock number 670-3890

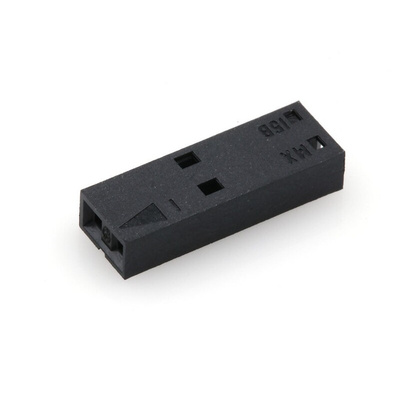

Molex Connector Housing, Straight Body Orientation, 3A Maximum Current - 70066 Series - 50-57-9002

Quickly and securely link a pair of circuits to your PCB with this two-way female connector housing from Molex. A single-row structure and compact dimensions of 5.05 (L) x 2.51 (W) x 15.24mm (D) mean the nifty component won't take up excess space on a crowded board. As it's built from high-strength PET alloy, you can rest assured it handles the knocks and scrapes associated with heavy-duty use. Plus, it's self-extinguishing in under 10 seconds, making this a safe choice for reducing fire hazards.

Features & Benefits

• Standard 2.54mm pitch is widely compatible, offering versatile mating options
• Stackable construction gives you flexibility over your PCB design

Applications

• Consumer electronics
• Medical technology
• Automotive industry

Which headers can I use with the connector housing?

This is a Version A unit, meaning it's an ideal match for headers from Molex's 70246, 70543, 70553 and 74099 series.

2.54mm Molex C-Grid/SL Series

Housing Connector (2.54)/.100 Grid Stackable Single Row Drawing
