50-57-9405, Molex, SL Female Connector Housing, 2.54mm Pitch, 5 Way, 1 Row, Корпус разъема

Molex SL 70066 Series Connector Housings

The Stackable Linear (SL) 70066 Series of 2.54mm pitch receptacle connector housings from Molex have been designed for low power and wire to board and wire to wire applications across a number of different industries. The SL range offers both flexibility in the design and configuration fittings and can be used in high vibration environments.

Features and Benefits

• 2.54mm pitch
• 2 to 25 circuits
• Dual and single row housing
• High temperature headers enable the use of reflow ovens in fixing headers to the PCB
• Black in colour
• Stackable housing

Note

For Version D see stock number 670-3890

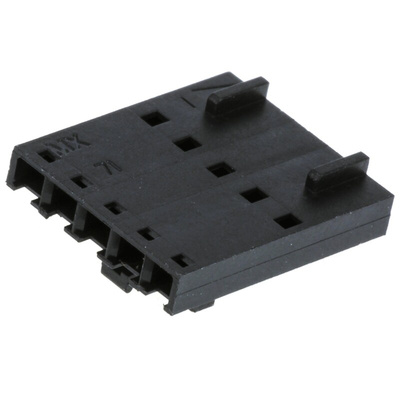

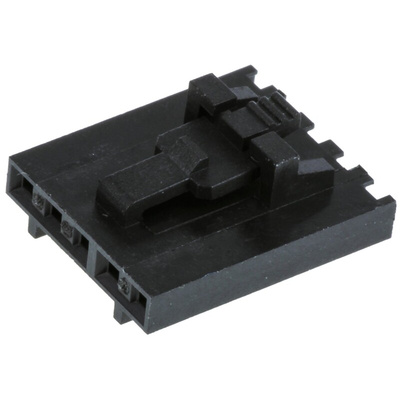

Molex Female Connector Housing, 2.54mm Pitch, 5 Way - SL Series - 50-57-9405

Use this crimp connector housing from Molex to protect your cable adapters in PCBs (printed circuit boards). The component's polyester alloy material makes it resistant to impact and abrasion, so you can use it in harsh conditions. Its five contacts let you control five circuits, meaning you can link multiple cables carrying both power and data signals to your circuit board. The unit has an integrated lock to latch to the mating part of your PCB when connected, and this prevents accidental disconnection to ensure a stable connection.

• Light weight of 0.52g so it's easy to handle
• Wide operating temperature range of -40°C to +105°C for use in demanding environments
• Keying to mating part, preventing wrong orientation or polarity
• Compact dimensions of 12.67 (L) x 6.58 (W) x 15.24mm (D) for space efficiency in small enclosures

Applications

• Computing
• Electrical voltage regulators

What's the pitch of this housing?

The pitch is defined as the distance between two contacts on the connector housing. This unit's pitch is 2.54mm, providing enough room to prevent accidental contact.

2.54mm Molex C-Grid/SL Series
