50-57-9402, Molex, SL Female Connector Housing, 2.54mm Pitch, 2 Way, 1 Row, Корпус разъема

Molex SL 70066 Series Connector Housings

The Stackable Linear (SL) 70066 Series of 2.54mm pitch receptacle connector housings from Molex have been designed for low power and wire to board and wire to wire applications across a number of different industries. The SL range offers both flexibility in the design and configuration fittings and can be used in high vibration environments.

Features and Benefits

• 2.54mm pitch
• 2 to 25 circuits
• Dual and single row housing
• High temperature headers enable the use of reflow ovens in fixing headers to the PCB
• Black in colour
• Stackable housing

Note

For Version D see stock number 670-3890

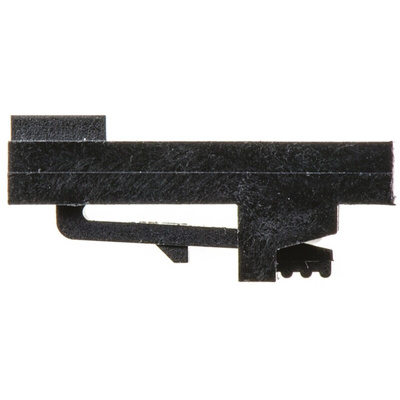

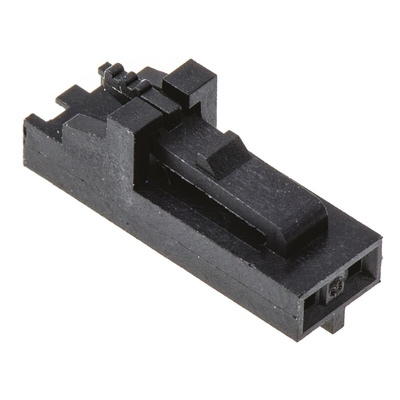

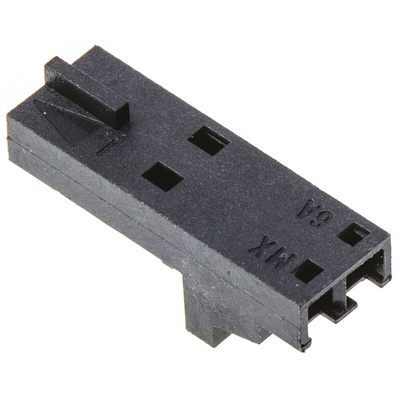

Molex SL Female Connector Housing, 2.54mm Pitch, 2 Contacts - 70066 Series - 50-57-9402

Need a way to protect wires and contacts and secure the connections in your low-power applications? Use this female connector housing from Molex. It's a versatile component suitable for the wire-to-wire or wire-to-board connections used in different industries. The 2.54mm casing is compact and accommodates two contacts in a single row, meaning it won't take up much space on your printed circuit boards (PCBs). The unit establishes reliable connections between PCBs or cables for the delivery of interference-free power and data signals.

• Nylon housing material is durable and able to withstand damage caused by chemicals, abrasions and corrosives
• Stackable housing can be combined and linked with similar connectors to establish multiple connections
• Operating temperature range between -40°C and +105°C for use in harsh ambient conditions

Applications

• Laboratory equipment
• Aerospace controls
• Computerised defence systems
• Data and telecommunications applications

Will this connector housing protect my connections against impacts in tough industrial setups?

Yes. This connector housing from Molex is made from a hardy polyester alloy that's impact resistant and will safeguard delicate connections against damage caused by jolts and vibrations.

2.54mm Molex C-Grid/SL Series

Datasheet

Line Drawing

Product Specification Sheet - 50-57-9402
