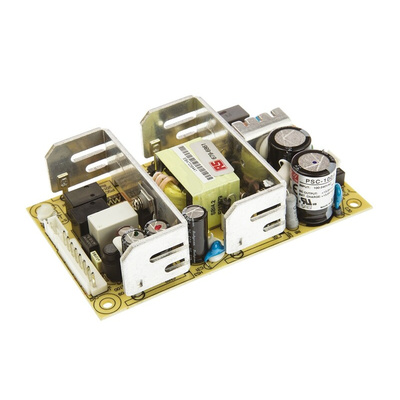

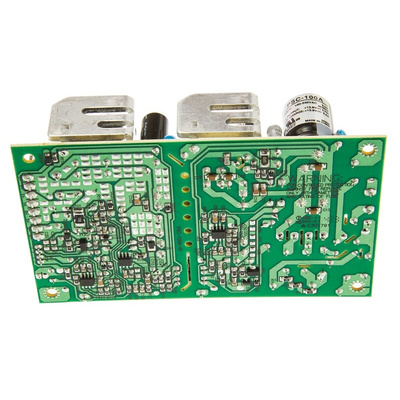

PSC-100 Series Battery Backed PSUs
In addition to the main output the PSC-100 series also has a charger facility to allow for monitoring or battery backup related applications. The PSC-100A will fully charge a 12V 15Ah battery and the PSC-100B will fully charge a 24V 7.5AH battery within 4 hours.
Short circuit, overload & over voltage protection
5x3 inch compact size
Universal AC input / Full range
Battery charger UPS function
Battery low protection / battery polarity protection by fuse
Alarm signal for AC OK and Battery low
100% full load burn-in test
Cooling by free air convection
For suitable mating connectors for the PSC-100 series see stock no 424-396
Note
MTBF to MIL-HDBK-217F @ 25°C.
Main output voltage is adjustable (PSC-100A 12-15V, PSC-100B 24-29V).
Standards
UL60950-1, TUV EN60950-1
Approvals
cULus, TUV, CB
