TDK-Lambda Switch Mode Power Supply

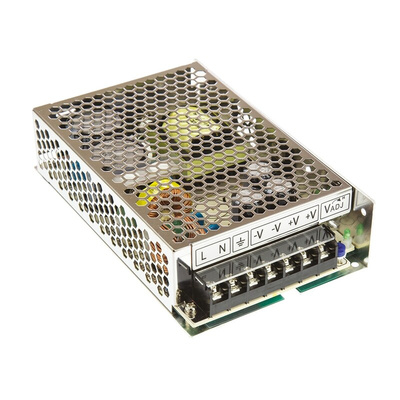

The TDK-Lambda LS series 100W single output AC to DC embedded switch mode power supply has an output current rating of 8.5A at 12VDC. It has a universal input supply voltage rating from 88VAC to 264VAC.
Note:
Operating temperatures are with de-rating
MTBF to MIL-HDBK-217F
Features and Benefits
Compact size
High MTBF up to 900,000 hours
Low cost
Overcurrent protection
Overvoltage protection
Superior operating temperature performance up to 70°C
Very high efficiency up to 87%
Withstands 300VAC surges (minimum 5 seconds)
Easier system cooling
Applications
Automated service
Factory automation
General purpose
LED lighting and display
Test and measurement
Certifications
EN 60950-1
EN 61000-3-2 (power factor correction)
EN55011/EN55022-B
FCC-B
IEC 60950-1
UL 60950-1
Datasheet - LS
