TDK-Lambda Switching Power Supply, HWS1000-24, 24V dc, 44A, 1kW, 1 Output, 120 → 330 V dc, 85 → 265 V ac, Источник питания

TDK-Lambda Switch Mode Power Supply

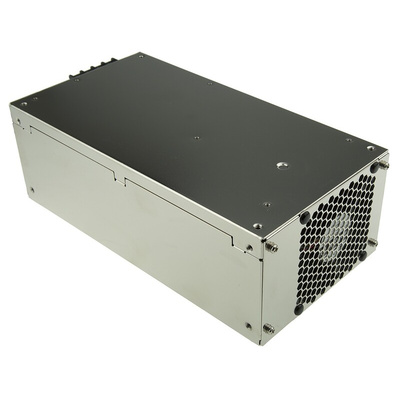

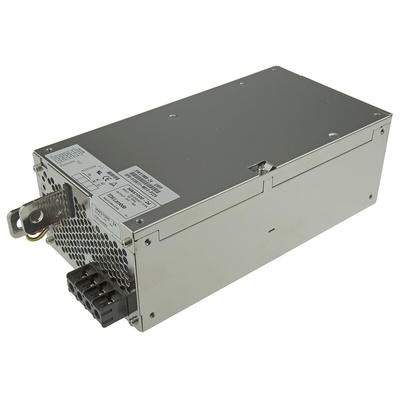

The TDK-Lambda HWS series 1000W single output AC to DC embedded switch mode power supply has an output current rating of 44A at 24VDC. It has a universal input supply voltage rating from 85VAC to 265VAC and 120VDC to 330VDC.
Note:
Peak load current for 10 seconds (maximum) on time, 35% duty cycle. Derate output above 50°C. Depth excludes terminal block/ connectors.

Features and Benefits

Exceptionally compact, requires typically 50% less space than previous generation products
Designed for high reliability
Long product lifecycle
LED indicator for power on
Easy installation
Screw terminals
Adjustable output voltage (±20%)
Conforms to SEMI F47 requirements for semiconductor manufacturing equipment

Certifications

UL508
UL 60950-1
CSA 60950-1
EN 60950-1
EN 50178
UL certified
CSA approved
EN 55022-B
FCC class B
EN 61000-3-2 (power factor correction)

HWS-A_300W-1500W_EN_datasheet
