RT424024 6-1393243-8, TE Connectivity PCB Mount Power Relay, 24V dc Coil, 8A Switching Current, DPDT, Реле

TE Connectivity Non-latching Relay

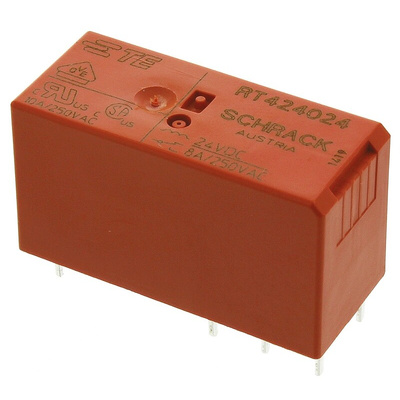

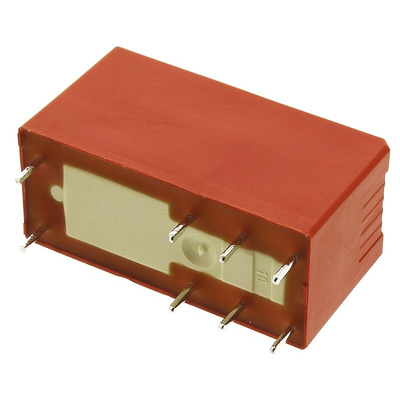

The TE Connectivity RT2 series PCB mount non-latching relay has contact configuration of DPDT. It is actuated with 24VDC coil voltage and 8A switching current. This general-purpose power relay has pinning of 5mm.
Note:
Part number (RT... F) F= Coil insulation system according to UL class F

Features and Benefits

Coil resistance is 1.44Kohm
Waveflow soldering version
Contact material is silver nickel (AgNi)
Creepage and clearance between contact and coil is ≥10/10mm
Operating temperature ranges between -40°C and 85°C
Flux resistant
Through hole terminal type

Applications

Boiler control
Timers
Garage door control
POS automation
Interface modules

Certifications

UL approved
CSA certified
VDE
