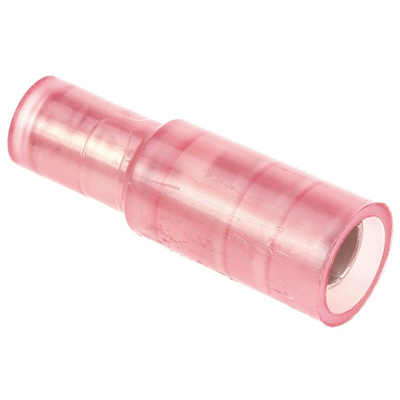

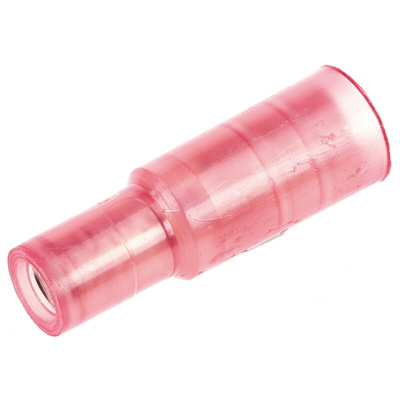

165399-1, TE Connectivity, PIDG Insulated Receptacle Crimp Bullet Connector, 0.5mm² to 1.6mm², 20AWG to 15AWG, 7.4mm Bullet

6805744
Номер производителя: 165399-1Производитель: TE Connectivity
Цена за шт. (норма упаковки 50 шт)
483.00 руб. (С НДС) *
Количество 50+ 250+ 1250+ 2500+ 5000+
Цена 483.00 руб. 435.00 руб. 420.00 руб. 405.00 руб. 393.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

TE Connectivity PIDG Crimp Bullet Connectors

PIDG (Pre-Insulated Diamond Grip) bullet connectors consisting of receptacle and plug terminals designed for uniform reliability in the most difficult circuit environments. These PIDG crimp bullet connectors consist of a precision-formed high conductivity copper body and barrel. Serrations inside the wire barrel provide maximum contact and tensile strength after crimping. The wire barrel is surrounded with a copper sleeve which provides wire insulation support. An outer colour coded nylon sleeve allows easy identification of wire size. These PIDG crimp bullet connectors also feature a funnelled wire entry which allows fast wire insertion during high-speed production. The construction of these PIDG terminals and the use of specialised tool dies allows a uniform and reliable crimp to be achieved
Available with various wire, barrel and stud sizes, these PIDG bullet terminals offer a versatile solution to a wide range of wiring applications

Features and Benefits

• High conductivity copper body
• Copper sleeve for improved wire insulation support
• Serrations in wire barrel for maximum contact and tensile strength
• Colour coded sleeves for easy wire size and tooling identification
• Funnelled wire entry for easy wire insertion
• Design enables a reliable and uniform crimp

Application

These PIDG crimp bullet connectors are suitable for use in a wide range of applications with many terminals meeting or exceeding the requirements of MIL-T-7928, Type II, Class 1 and 2. Applications include instruments/control, lighting, power supplies, panel boxes, transportation, lifting equipment, motors, aerospace and appliances.

TE Connectivity PIDG Terminals

Техническая спецификация
pdfCrimp rcp Shur-plug 4mmdia 0.5-2.5 sq.mm
pdfPIDG Terminals & Splices - Quick Reference Guide
Maximum Wire Size mm²:
1.6мм²
Minimum Wire Size mm²:
0.5мм²
Диаметр ядра:
7.4мм
Длина общая:
22.9мм
Защищенный/Незащищенный:
Unshrouded
Изоляционный:
Insulated
Максимальный размер провода AWG:
15AWG
Материал изоляции:
Медь
Материал контактов:
Латунь
Минимальный размер провода AWG:
20AWG
Покрытие контактов:
Олово
Род:
Receptacle
Серия:
PIDG
Цвет:
Красный
