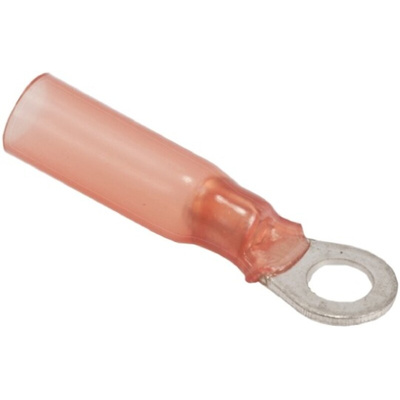

224793-000, TE Connectivity, DuraSeal Insulated Ring Terminal, 6mm Stud Size, 0.5mm² to 1mm² Wire Size, Red, Обжимные контакты

6805810
Номер производителя: 224793-000Производитель: TE Connectivity
Цена за шт. (норма упаковки 50 шт)
390.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

TE Connectivity DuraSeal Ring Terminals

DuraSeal crimp ring terminals with an environmentally sealed wire connection providing insulation and protection to electrical connections from mechanical abuse, vibration, wire-pull out, abrasion as well as being resistant to water, salt and other contaminants. The barrels of these DuraSeal crimp ring terminals are covered in a heat-shrinkable nylon tubing lined with a hot-melt adhesive with is cut and abrasion resistant.

Red 0.25 - 1.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²

Approvals

UL

Duraseal Heatshrinkable

TE heat shrinkable pre-insulated nylon splices and crimp terminals provide reliable connections, especially where environmental sealing is important. Covering cable sizes from 0.5mm - 6.0mm², they are designed for use where water or condensation may be encountered, or where abrasion or mechanical abuse could be problematic. To complete a joint, the cable connector is crimped in the traditional manner, and the sleeving is then heated to shrink around the cable insulation. Special adhesive flows during the heating to seal the joint.

• The TE Duraseal kit is especially suited for use in automotive (approved by most car manufacturers) and marine builds, where environmental sealing is important
• Kits are also available comprising various heat-shrinkable pre-insulated nylon splices and terminals, covering ranges from 0.5mm² to 6.0mm².

Approvals

UL Listed

Техническая спецификация
pdfCrimp,ring tongue,Sn,18-22awg,box
Изоляционный:
Insulated
Максимальный размер провода AWG:
18AWG
Максимальный размер провода мм²:
1мм²
Материал изоляции:
Нейлон
Материал контактов:
Медь
Минимальный размер провода AWG:
22AWG
Минимальный размер провода мм²:
0.5мм²
Покрытие контактов:
Олово
Размер штыря:
6мм
Серия:
DuraSeal
Цвет:
Красный
