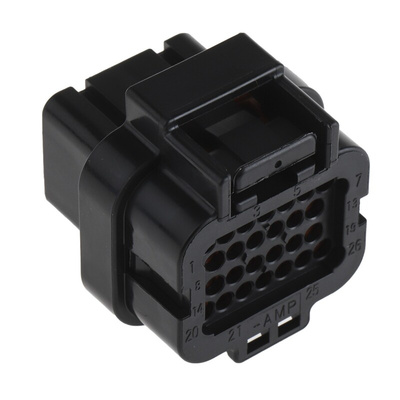

3-1437290-7, TE Connectivity, AMP Superseal 1.0 Automotive Connector Plug 26 Way

TE Connectivity SUPERSEAL Series 1.0 mm Plug Housing Assembly

Introducing the Superseal series of plug housings from TE Connectivity. Durable & reliable design, facilitating the mounting between your PCB boards, either through cabling/wiring or fitting further PCB boards together. The Superseal series has a contact size of 1 mm. and comes as either right-angle or straight body orientation.

Features and Benefits
• Durability: After cap housing is connected, the plug housing is mated and then 78.4 N force is applied in a rocking motion. 25 test cycles.
• Thermoplastic / PET housing for reliable performance/resistance. The outer material is lightweight and allows design flexibility.
• The SUPERSEAL series has built-in secondary locking mechanisms which facilitate contact insertion into the housing, thus preventing the contacts from backing out during mating.
• Polarization key as standard, helping prevent the insertion of another circuit board unless properly slotted in.
• A varied amount of contacts (26, 34 & more) suitable in a wide array of industrial sockets.
• 3 mm pitches available.

Applications
• Industrial controls
• Networking systems
• Some household appliances

3-1437290-7 Features:

• Housing for female Terminals
• Mating Pin Diameter 1mm
• Connector system wire to board and wire to device

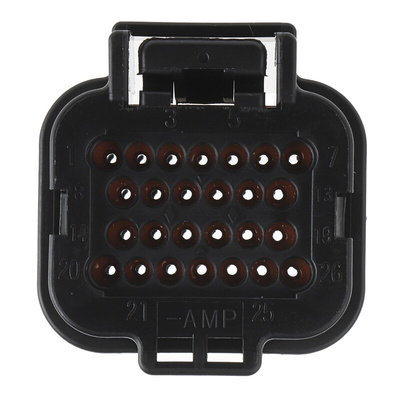

• 26 positions, 4 rows
• Centerline (Pitch) 3mm
• Primary locking feature integrated in the housing
• Sealable
• Operating voltage 250 Vac
• Dimensions (WxLxH): 32.2 x 32.15 x 34.55 mm
• Degree of protection JIS D0203
• UL 94V-2 flammability rating
• Temperature range -40 to +125°C
• Straight body orientation

Housing,plug,Superseal,1.0,key,26W
