205090-1, TE Connectivity, AMPLIMITE 109 Series, size 20 Female Crimp D-sub Connector Contact, Gold Signal, 24 → 20 AWG, Контакты

AMPLIMITE D-Sub Connector, Series 109, MIL-C-24308 and MIL-C-39029 Contacts

A range of Size 20 DM signal pin and socket contacts for use with AMPLIMITE series 109 MIL-C-24308 and MIL-C-39029 d-sub connectors. These series AMPLIMITE series 109 contacts are screw-machined with a copper alloy body material with gold plating on the contact area. For suitable insertion/extraction tool see stock number 301-8414.

680-9210 : Crimp snap-in pin contact 24-20 awg, insulation diameter 1.83mm
680-9222 : Crimp snap-in socket contact 24-20 awg, insulation diameter 1.83mm
782-6196 : Posted pin contact
782-6250 : Crimp snap-in pin contact 28-26 awg, insulation diameter 1.83mm

Note

782-6196 is a Posted Contact.

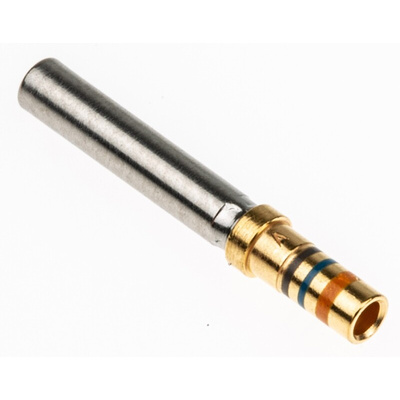

The TE Connectivity 205090-1 is a socket contact from the HD 20 series. It is designed for use with the AMPILITE range. This screw-machined crimp contact is made from nickel with a gold plating. It is designed to snap-fit into your chosen housing for easy assembly. The contact is then crimped to a wire with a size of 0.2-0.6mm² (24-20AWG).

• Contact size: 20
• 7.5A contact current rating
• Post diameter: 0.04 mm
• Colour coded: Orange, Blue, Grey

Versions Available:
(170-9474) – bag of 1000
(680-9222) – pack of 5

TE Connectivity AMPLIMITE D-Subminiature Connectors

Connector,contact,sz20,sc-m rcp,24-20awg
