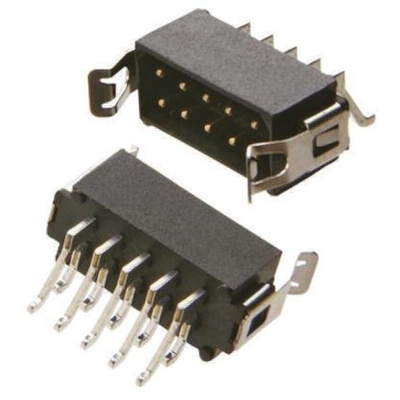

M80-6660842, HARWIN Datamate L-Tek Series Right Angle Surface Mount PCB Header, 8 Contact(s), 2.0mm Pitch, 2 Row(s), Shrouded

DIL Plug - 90° SMT

This range of L-Tek DIL 90° SMT Headers are part of the Datamate Series from Harwin

M80-665 are Unlatched
M80-666 are Latched
M80-667 have a Friction Latch

2.0mm Datamate Series

The Datamate range is ideal for applications where safety is key, the application is subject to high loads of vibration, shock and acceleration or operates in harsh environments. These Datamate connectors are highly durable and can withstand high numbers of mating cycles without any degradation in performance. This performance is made possible by Harwin’s use of High Reliability four finger Beryllium Copper contacts in the Datamate range. These contacts feature a 4 finger clip to ensure integrity of connection under the most severe conditions.

Polarised mouldings
High reliability connector system
The L-Tek Datamate connectors are available with or without Latches.
Mates with known industry equivalents
Suited for COTS applications
Complies with BS9525-F0033/MIL C 55302/CEC 75101-008

Standard Datamate dil horizontal smt male assembly (latched) Drawing

Datamate Catalogue Pages

Datamate Connectors Data Sheet
