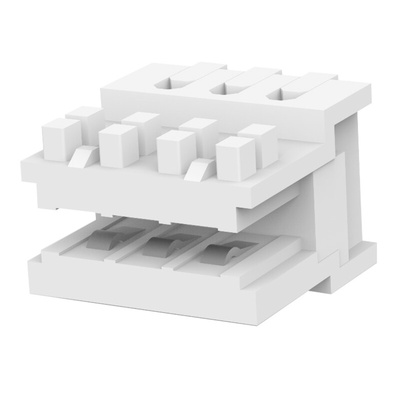

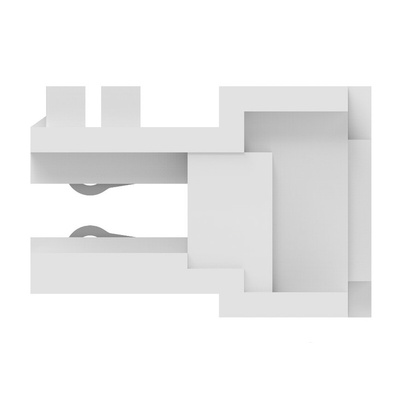

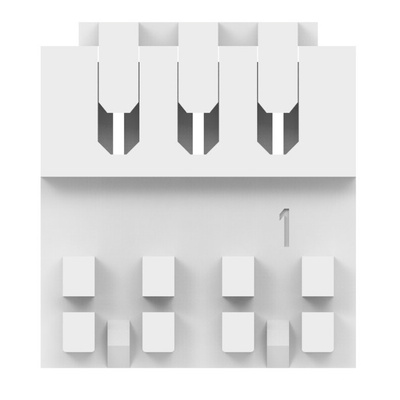

1-966194-3, TE Connectivity Right Angle Female Edge Connector, Cable Mount, 3-Contacts, 2.5mm Pitch, 1-Row, IDT Termination, Разъем

TE Connectivity AMP DUOPLUG 2.5 mm Receptacle Connectors

The AMP DUOPLUG IDC connector system based on the RAST 2.5 standard. These RAST 2.5 AMP DUOPLUG IDC connectors can be used as single piece edge connectors where they fit into existing RAST 2.5 PCB frames or as a 2 piece connection system where they mate with existing RAST 2.5 headers. The IDC contacts of these AMP DUOPLUG receptacles provide a quick and easy termination method. The 3 side walls of the housings protect the contacts against stubbing and ribbed keying ensures accurate mating. These AMP DUOPLUG receptacles have a reliable locking feature that provides a secure mating connection and provides strain relief for the wire.

Features and Benefits

• Designed according to RAST 2.5 specification
• Can be used as a one piece or 2 piece connection
• IDC contacts for quick and easy connection
• Contacts protected against damage
• Keying for accurate mating
• Locking feature for secure connection and strain relief

Applications

These AMP DUOPLUG IDC receptacles are suitable for use in a wide range of applications. These applications include household appliances, consumer electronics, telecommunications, automotive industry, vending machines, measuring devices.

2.5mm Centerline Connector System (AMP DUOPLUG)

2.5mm Duoplug,female,90°,IDT,3 way
