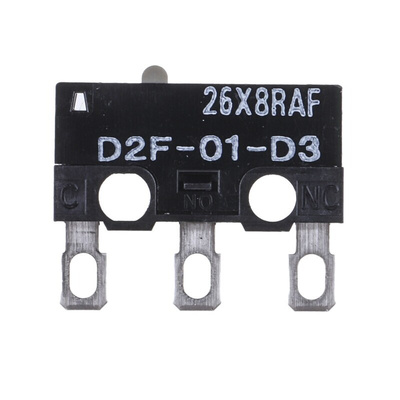

D2F-01-D3, Omron Pin Plunger Micro Switch, Solder Terminal, 100 mA @ 30 V dc, SPDT, IP40, Микропереключатель

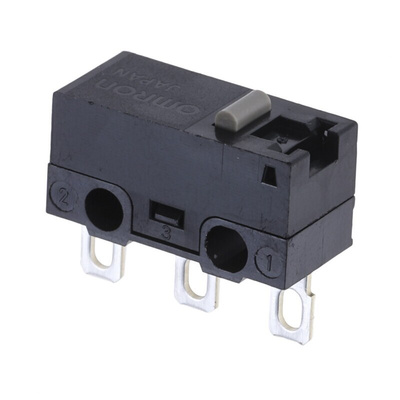

Omron Microswitch

The Omron Microswitch has an electrical rating of 100mA at 30VDC with SPDT contact configuration. It has gold contact material with a pin plunger actuator. This Microswitch is ideal for a wide variety of applications from household appliances and office equipment to audio equipment and communication equipment.

Features and Benefits

Operating temperature ranges between -25°C and 65°C
Operating force is 1.47N
Mechanical life is 10000000 operations
Long life span assured by high-precision dual spring reverse-action mechanism
Flux penetration prevented by using an insert terminal and allowing a height difference at the case bottom
Solder terminal

Certifications

IP40 rated
UL approved
CSA certified
ENEC certified

Ultra Subminiature Basic Switch D2F Data Sheet
