V-16-1A6, Omron Pin Plunger Micro Switch, Solder Terminal, 16 A @ 250 V ac, SPDT, IP40, Микропереключатель

Omron Microswitch

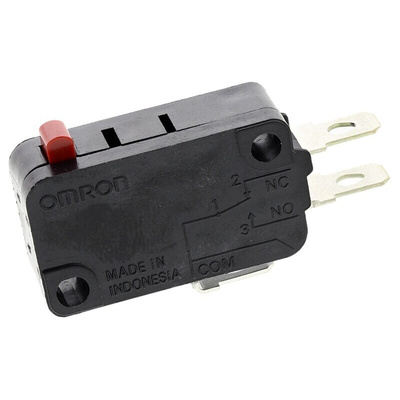

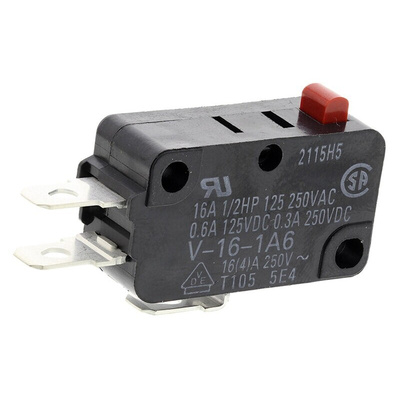

The Omron V16 series miniature microswitch has a pin plunger actuator and a contact rating of 16A at 250VAC. This is a highly reliable SPDT contact configuration microswitch has silver alloy contact material. It can be used for interrupting current when doors are opened or closed.

Features and Benefits

Operating force is 3.92N
Mechanical life of 500000000 operations
Operating temperature is between -25°C and 80°C

Certifications

IP40 rated

Miniature Basic Switch V Data Sheet
