SY5140-4DZ-Q, SMC 5/2 Pneumatic Solenoid Valve - Solenoid/Pilot SY5000 Series 230V ac, Клапан

SY5000 Z Series Valves

Higher flow capacity than body ported SY type Cv=0.3 (3000 series) Cv=0.7 (5000 series)
Compact, lightweight design, ideal for installation in restricted spaces or enclosures
Low power consumption allows direct PLC control
Service life in excess of 50 million cycles
5//2 and 5//3 valve configurations
L type pinch plug or DIN plug connections
Non locking manual override

Note

When ordering valves with a pinch type plug connection plug connectors must be ordered separately. Valves with a DIN connection are supplied with DIN 43650 plugs.

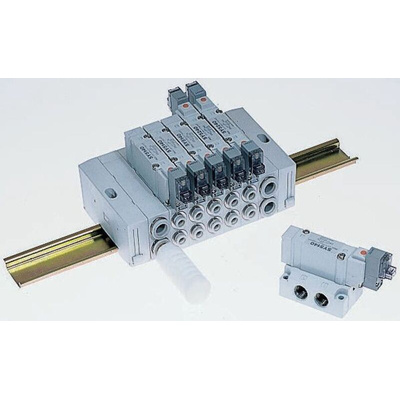

SMC SY Z Series

A range of modular DIN rail mounted solenoid operated valves and accessories for pneumatic circuits. All valves operate using compressed filtered air (lubricated or non-lubricated) and have an operating temperature range of -10 to +50°C.

5 Port Solenoid Valve SY Series Data Sheet
