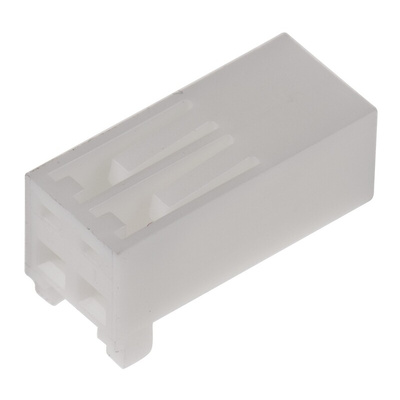

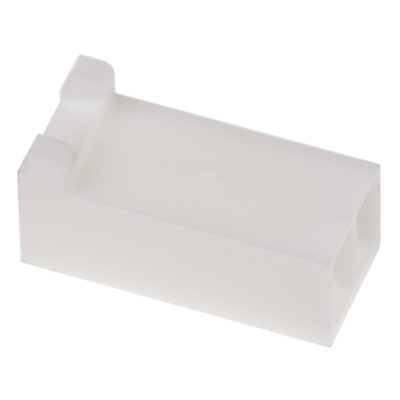

1375820-2, TE Connectivity, CST-100 II Female Connector Housing, 2.54mm Pitch, 2 Way, 1 Row, Корпус разъема

TE Connectivity CST 100 II Receptacle Housings

TE Connectivity bring you a range of free hanging housings with a 2.54mm centreline for wire to board applications. The CST 100 II range are made from a brilliant UL 94V-0 nylon GF and feature latches with polarizing tab for secure mating and alignment. These housings mate with the TE Connectivity 'MTA-100' series.

Features and benefits:

•Made from a sturdy Nylon GF
•2.54mm centreline
•Latching and polarisation housing to ensure a secure mating and proper alignment.
•Accepts 22-26 AWG wire
•Operating temperatures of -55°C to 105°C
•Strong mating with no disconnects under vibration or shock

Applications:

•Medical instruments
•Automotive controls
•Copiers
•Appliances
•Commercial Printers
•Vending
•Computers
•Instrumentation & test equipment
•Telecommunications
•Storage equipment

Need receptacle crimps? See 909-7390

Note

Not interchangeable with CST-100 contacts and housings
