RS PRO Radius Gauge Set Metric 16 Blades 0.25mm 0.75mm to 13mm, Радиусный шаблон

RS PRO Radius Gauge Set Metric 16 Blades 0.25 mm, 0.5 mm, 0.75 mm, 5.5 mm to 13 mm, 5 mm

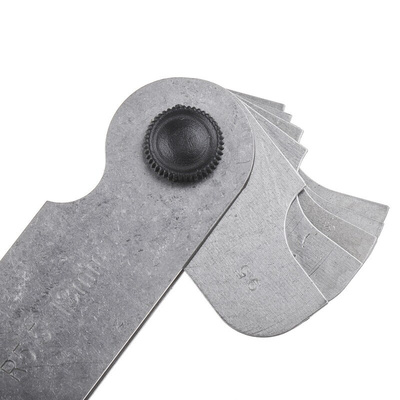

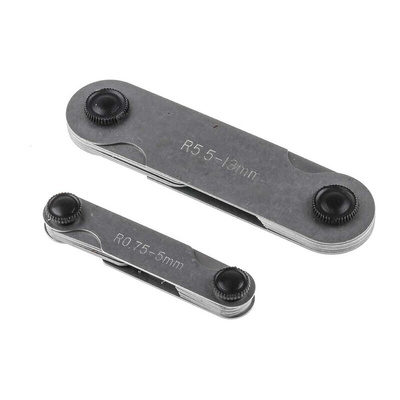

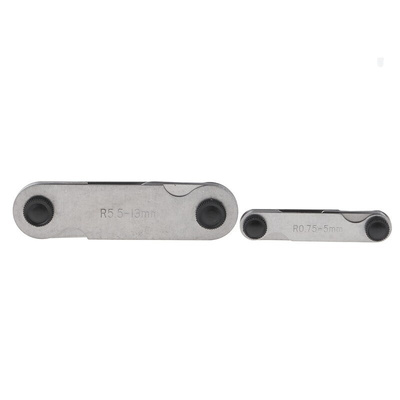

This two-piece radius gauge set has a compact penknife style for ease of storage. With 16 to 18 blades per gauge, this set is handy for measuring internal and external radii within a range of 0.75 mm to 13 mm.

Each gauge in this set has clearly marked blades for quick and easy measurement. The 18-blade gauge measures radii between 0.75 mm and 5 mm, while the 16-blade gauge measures radii between 5 mm and 13 mm. The convex and concave shapes of the blades allow for use in awkward locations, such as inside a tube.

Part of the RS PRO series, this product is designed to deliver reliable quality and durability. Its stainless steel construction means it's resistant to fire, heat and corrosion.

Commonly used in manufacturing and the machining industry, this radius gauge set lets you measure curved corners and check for imperfections on curved surfaces.

Features and Benefits

• Two-piece radius gauge set
• Metric measurement
• Stainless steel construction
• Set 1 (18 blades): 0.25 mm increments, measurements ranging from 0.75 mm to 5 mm
• Set 2 (16 blades): 0.5 mm increments, measurements ranging from 5 mm to 13

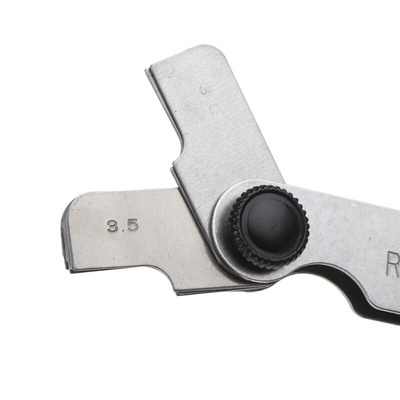

• Each blade is clearly marked with its size

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Datasheet

RS Pro Datasheet
