RS PRO Magnifier, 7X x Magnification, Увеличительное стекло

Graticule Magnifier

Measurement of linear dimensions, angles, radii & grid sizes depending (on which scale is fitted)
Each magnifier is fitted with a Metric No.2 (8) scale 0-20mm x 0.1mm grads.
Body manufactured from black anodized aluminum & incorporates a positive focusing ring
Scales are fitted to the base of the clear acrylic drawtube

Note

For suitable scales see RS 683-0835 (No.1); 683-0838 (No.2); 683-0832 (No.3); & 683-0841 (No.4).

Supplied with

Velvet lined leatherette case.

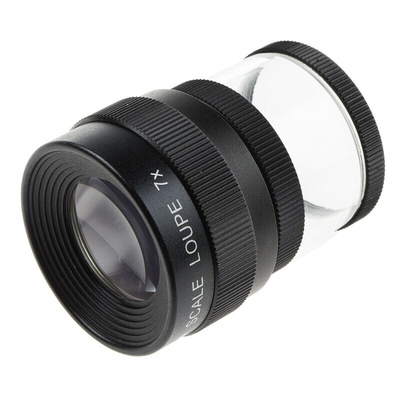

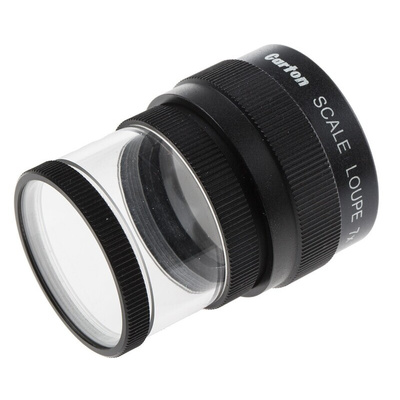

RS PRO Surface Contact Magnifier x 7

From RS PRO this lens can offer magnification of x7, making objects sharper to the human eye and the ability to see more intricate details. The magnifier is fitted with a Metric No.2 (8) scale 0-20mm x 0.1mm grads.

The body of the magnifier is made from black anodised aluminium and incorporates a positive focusing ring. The scale chart fitted can be clearly seen through the eyepiece and is fitted to the base of the clear acrylic drawtube. The eyepiece is supplied in a velvet leatherette case to protect it.

Features and Benefits

• Magnification power of x7
• Scale chart is fitted to the drawtube on the magnifier
• Perfect for measuring dimensions, angles and grid sizes
• Black aluminium body
• Handheld magnifier
• Perfect to use with or without a light
• Supplied with a leatherette case perfect for loupe storage

Dimensions: -

Width: 97mm
Height: 58mm
Length: 125mm
