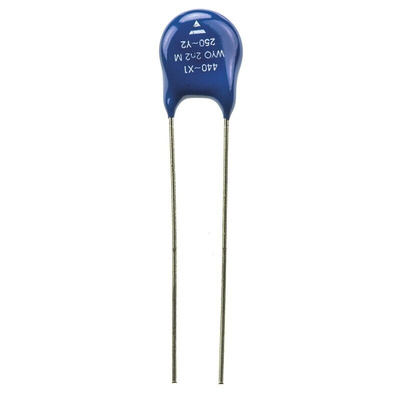

WYO222MCMBF0KR, Vishay Single Layer Ceramic Capacitor (SLCC) 2.2nF 400V ac ±20% Y5U Dielectric, WYO, Through Hole +125°C Max Op. Temp., Конденсатор

WYO series ceramic disc

Design

The capacitors consist of ceramic disc both sides of which are silver plated. Connection leads are made of tinned copper having diameters of 0.6 mm. The capacitors may be supplied with straight or kinked leads having a lead spacing of 5.0 mm or 7.5 mm. Coating is made of blue colored flame retardant epoxy resin in accordance with UL 94 V-0.

Features

- Complying with IEC 60384-14 3rd edition
- High reliability
- Wide range of capacitance values
- Wide range of different leadstyles
- Singlelayer AC Disc safety capacitors

Applications

- X1, Y2 according to IEC 60384-14.3
- Line-by-pass

Approvals

IEC 60384-14.3
UL 60384-14.3
CSA E60384-1:03 2nd edition, CSA E60384-14:09 2nd edition

Warning

Capacitors are designed for connecting directly across a mains supply, but should NOT be used in positions where failure of a capacitor would expose anybody to electric shock.

Approvals

UL, CSA
