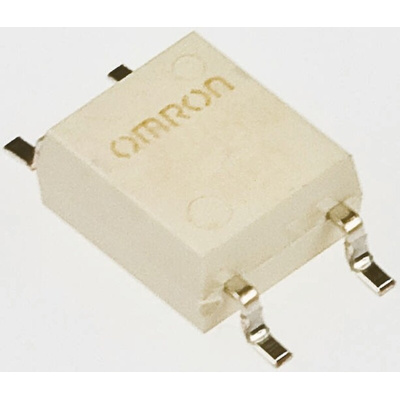

G3VM-351GL, Omron G3VM Series Solid State Relay, 0.12 A Load, Surface Mount, 350 V Load, 1.3 V Control, Реле

G3VM MOSFET SSR

Solid-state relay with MOSFET output and photo-LED input
Combines advantages of mechanical and solid state technology
Low on-resistance and output capacitance
Long life
Wide range of models available
Ideal for telecom solutions, including line seizing, switching, hook switching, line transformer control and other phone functions

G3VM-351GL MOS FET General Purpose Series SSR – Solid State Relay.

The G3VM-351GL relay is part of the upgraded G3VM-S2 series offering a wealth of benefits. NO (normally open) through hole, SOP4 package relay with 4 PCB terminals and a load voltage of 350 V. This series of relays are protected from overcurrents with a current limiting protection.

Features and Benefits G3VM-351GL General Purpose SSR – Solid Sate Relay.

•MOS FET Solid state relay.
•Surface mounted relay terminals.
•SOP4 package.
•Contact form SPST-NO (1a) (normally open).
•Current limiting 100 to 300 mA.
•4 Relay terminals.
•Load voltage 350 V ac.
•Load current 120 mA max.
•Maximum resistance with output ON 15 Ω.
•Current leakage when relay is open 1000 nA max.
•Capacitance between terminals 70 pF.
•SSR -Turn ON time 1 ms max.
•SSR -Turn OFF time 1 ms max.
•Dielectric strength between I/O 1500 Vrms.
•RoHS Compliant.

Additional Features G3VM-351GL General Purpose SSR – Solid State Relay.

•Long operational life.
•Small leakage current.
•SSR has excellent shock resistance.
•High insulation.
•Silent operation.
•High-speed switching.
•Control the micro analogue signal.
•Photo-LED input.
•Status output.
•Compact

Other Application Examples.

•Test and measurement equipment.
•Communication equipment.
•Industrial equipment.
•Measurement devices.
•Electronic automatic exchange systems.
•Cordless telephones.
