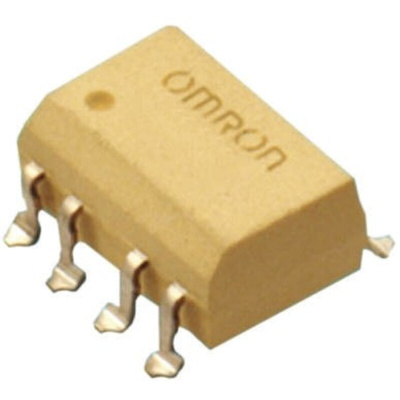

G3VM-352F, Omron G3VM Series Solid State Relay, 0.12 A Load, Surface Mount, 350 V Load, 1.3 V Control, Реле

G3VM MOSFET SSR

Solid-state relay with MOSFET output and photo-LED input
Combines advantages of mechanical and solid state technology
Low on-resistance and output capacitance
Long life
Wide range of models available
Ideal for telecom solutions, including line seizing, switching, hook switching, line transformer control and other phone functions

G3VM-352F MOS FET General Purpose Series SSR – Solid State Relay.

The G3VM-352F relay is part of the upgraded G3VM-W series offering a wealth of benefits. NO (normally open) through hole, DIP 2a (dual inline) package relay with 8 PCB relay terminals and a load voltage of 350 V

Features and Benefits G3VM-352F General Purpose SSR – Solid Sate Relay.

•MOS FET Solid state relay.
•Slim 2.1 mm high relay.
•Surface mounted relay terminals.
•DIP 2a – (dual in line package)
•Contact form DPST-NO (normally open).
•Through hole relay.
•SMT 2a.
•PCB Terminals.
•Infrared LED (optically coupled).
•8 Relay terminals.
•Load voltage 350 V ac.
•Load current 120 mA max.
•Maximum resistance with output ON 35 Ω.
•Current leakage when relay is open 1000 nA max.
•Capacitance between terminals 30 pF.
•SSR -Turn ON time 1 ms max.
•SSR -Turn OFF time 1 ms max.
•Dielectric strength between I/O 2500 Vrms.
•RoHS Compliant.

Additional Features G3VM-352F General Purpose SSR – Solid State Relay.

•Long operational life.
•Small leakage current.
•SSR has excellent shock resistance.
•High insulation.
•Silent operation.
•High-speed switching.
•Control the micro analogue signal.
•Photo-LED input.
•Status output.
•Compact

Other Application Examples.

•Security equipment.
•Amusement equipment.
•Measurement devices.
