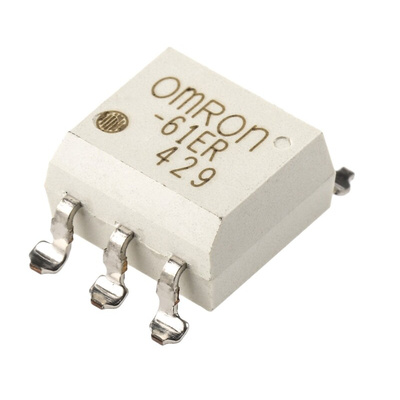

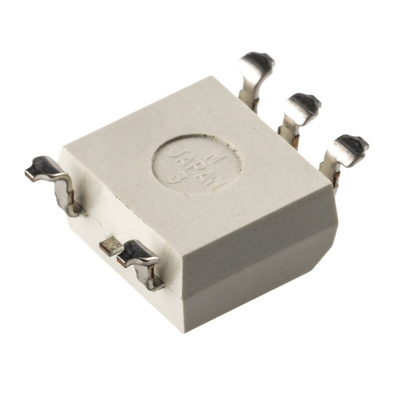

G3VM-61ER, Omron G3VM Series Solid State Relay, 2.5 A Load, Surface Mount, 60 V ac Load, 1.5 V Control, Реле

G3VM MOSFET SSR

Solid-state relay with MOSFET output and photo-LED input
Combines advantages of mechanical and solid state technology
Low on-resistance and output capacitance
Long life
Wide range of models available
Ideal for telecom solutions, including line seizing, switching, hook switching, line transformer control and other phone functions

G3VM-61ER MOS FET General Purpose Series SSR – Solid State Relay.

The G3VM-61ER MOS FET relay offers a wealth of benefits required from maintenance free relays. SPST-NO (normally open), DIP (dual inline) surface mounted package relay with 6-pin. This series relay is designed for switching minute analogue signals.

Features and Benefits G3VM-61ER SSR – Solid Sate Relay.

•MOS FET Solid state relay.
•Surface mounted relay terminals.
•DIP6 (dual in-line).
•SMT
•Contact form SPST-NO 1a (normally open).
•6 Relay terminals.
•Load voltage 60 V.
•Load current 3000 mA max.
•Maximum resistance with output ON 0.65 Ω.
•Current leakage when relay is open 10 nA max.
•Capacitance between terminals 400 pF.
•SSR -Turn ON time 1.5 ms max.
•SSR -Turn OFF time 0.4 ms max.
•Dielectric strength between I/O 2500 Vrms.
•Switches minute analogue signals.
•RoHS Compliant.

Additional Features G3VM-61ER General Purpose SSR – Solid State Relay.

•Long operational life.
•Small leakage current.
•SSR has excellent shock resistance.
•High insulation.
•Silent operation.
•High-speed switching.
•Control the micro analogue signal.
•Photo-LED input.
•Status output.
•Compact
•Operating temperature, ambient -20°C to +60°C, no icing or condensation.

Other Application Examples.

•Test and measurement equipment.
•Security equipment.
