98267-0711, Molex PREMO-FLEX FFC JUMPER Series Flat Ribbon Cable, 4-Way, 1mm Pitch, 152mm Length, Ленточный кабель

Molex Premo-flex FFC jumper cable

From Molex comes a range of type a Premo-Flex FFC (flat flex cable) jumper cables. Manufactured to high standards, these 152 mm Premo-Flex FFC prove to be an excellent solution to an array of applications such as:
Automobiles - These FFC can be used to wire up radios, CD and DVD players, GPS devices, LCD's, keyboards and moveable units
Consumer - This can cover set-top boxes and plasma displays
Computers – This can cover notebooks, printers, scanners, keyboards, and LCD flat

Features

• Voltage - 60 V ac


• 1 mm pitch


• 0.22mm Cable thickness


• Max operating temperature of 105°C


• Meets industry-standard ZIF (zero insertion force) connector requirements


• Great for connections between PCB's


• Easy assembly in hard to reach applications

Variations

Molex offers variations of the number of circuits (loaded) in these range of cables,
4589169 - 6
4589175 - 8
4589181 - 10
4589197 - 12
4589204 - 14
4589210 - 16
4589226 - 18
4589232 - 20
4589248 - 22
4589254 - 24
4589276 - 26
4589282 - 28
4589298 - 30
6842308 - 4

What is Pitch?

The pitch of a cable is the distance from the central part of one conductor to the central part of another conductor

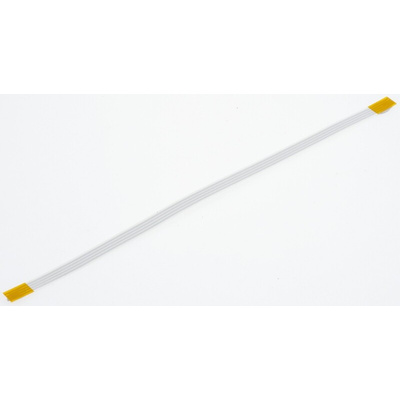

Molex 4-Way Unscreened Flat Ribbon Cable, 152mm Length, Grey - PREMO-FLEX FFC JUMPER Series - 98267-0711

Use this flat ribbon cable from Molex to connect internal peripheral devices in computers. The FFC (flexible flat cable) is composed of four individual wires placed parallel to each other and taped at their contact ends so they don't disintegrate. Its contacts are made of highly conductive copper material that ensures a reliable connection. They're also tin-plated for corrosion resistance, so they won't rust. With a narrow pitch of 1mm, this cable is a practical choice for use in applications with limited space.

• Reel length of 152mm for versatile use without excess cable
• High flexibility for use in awkward setups
• Wide operating temperature range of -40°C to +105°C for use in harsh environments
• Low weight of 0.464g means it's easy to handle and won't put a strain on your PCB (printed circuit board)
• Meets industry-standard ZIF (zero insertion force) connector requirements so it's very easy to insert

Applications

• IT equipment
• Consumer electronics
• Car accessories

What is meant by 'cable pitch'?

The pitch of a cable is the distance between the centres of each of its conductors.

Note

4x6

Approvals

UL (E60389); CSA (LR20812)

1.0mm FFC/FPC Connectors – Molex

Datasheet

Datasheet

Brochure - Premo-Flex Flat Flexible (FFC) Cable Jumpers

Product Specification Sheet - 98267-0711
