0916605, Phoenix Contact Motor Protection Circuit Breaker CLIPLINE, Контактор

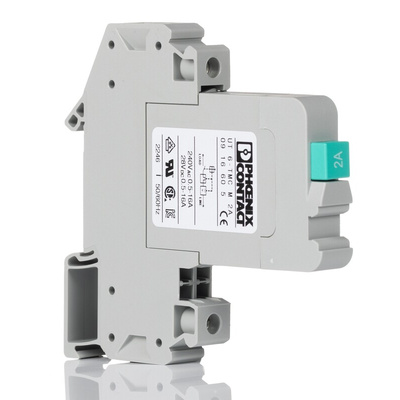

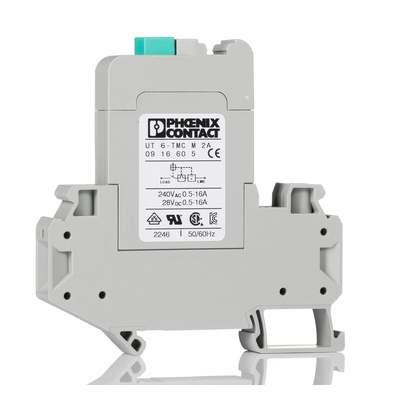

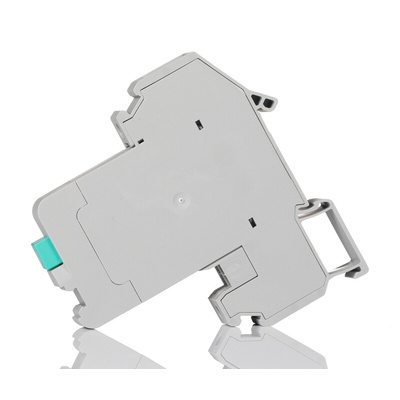

Phoenix Contact Motor Protection Circuit Breaker, 1 Position, 2A Current Rating - UT 6-TMC M 2A - 0916605

Put the brakes on power faults in your motor-driven appliances with this motor protection circuit breaker from Phoenix Contact. By tripping for short circuits at 12 times its 2A current rating, it stamps out dangerous electrical loads before they hit your downstream machinery. Sudden surges are cut short quickly, as the device comes with thermomagnetic breaking that takes between 3 and 5ms to shut down a circuit. The unit severs your connections even if its actuator is stuck, thanks to its reliable trip-free mechanism.
Need a safety device for a tight space? This breaker measures just 12.3 (W) x 85.5 (H) x 89.5mm (D), so it's a sure fit for busy systems. Mounting the unit is done in a flash, as it works with standardised DIN rails to snap on beside your existing components. Thanks to a service life of up to 6,000 switching cycles, you can rest assured that this is a long-lasting option.

Features & Benefits

• Certified by UL 1077 standards to ensure reliable resettable fault protection
• Accepts conductor cross-sections between 0.2 and 10mm², so it works with commonly used wire sizes

CLIPLINE COMBI terminal blocks

A highly flexible system of terminal blocks featuring a disconnectable plug-in zone and 4 connection methods: screw (UT), spring-cage (ST), push-in (DT) and self-stripping (QT). The entire range is standardised. These four connections methods can be freely combined to connect terminal blocks and pluggable connectors, whatever their connector type. Both the bases and connectors are protected from coming into contact with hands. Self-stripping connections (QT-COMBI): Wiring time is reduced by up to 60%, as cables need not be stripped.A screwdriver is used to lock the self-stripping mechanism. Spring terminals (ST - COMBI): The connection point is opened using a screwdriver to lever the spring. This technology provides constant contact force for vibration-proof use. Screw connection (UT - COMBI): Universal terminal enabling a multi-conductor connection.

UT 6-TMC M...Thermomagnetic circuit breakers Data Sheet

Line Drawing - 0916605
