Yale Hoists Manual 1.5m 3000 kg Hoist, UNO 3000, Лебедка

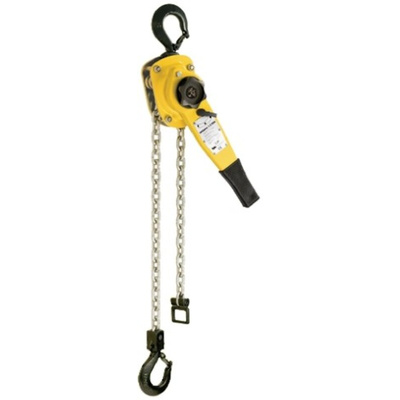

Yale Hoists Ratchet Lever Hoist

The Yale Hoists ratchet lever hoist is can lift loads up to 3000kg. The versatile ratchet lever hoist is designed for pulling, lifting, and lashing of loads. It has a compact design and a robust, steel stamped construction.
Warning
Not for passenger elevation.

Features and Benefits

Lift height is 1.5m and closed height is 520mm
Grade 80 zinc plated chain
Hook suspension
Powder coated housing
Steel hand wheel
Minimal effort required to operate the lever due to new and improved gearing
Automatic screw-and-disc type load brake with corrosion-protected components
Free chaining device as standard allows quick attachment of the load without having to crank the lever when not under load
Heavy-duty robust chain guide rollers eliminate jamming of the chain
Innovative bottom block features recessed bolt connections to avoid accidental damage

Applications

Industries
Services
Trade

Certifications

EN13157:2004 addition 2009-A1
EN ISO9001:2008
EN 818-7
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Operating instruction

Datasheet
